Next-Generation Core Density Scaling Rack-Level Performance

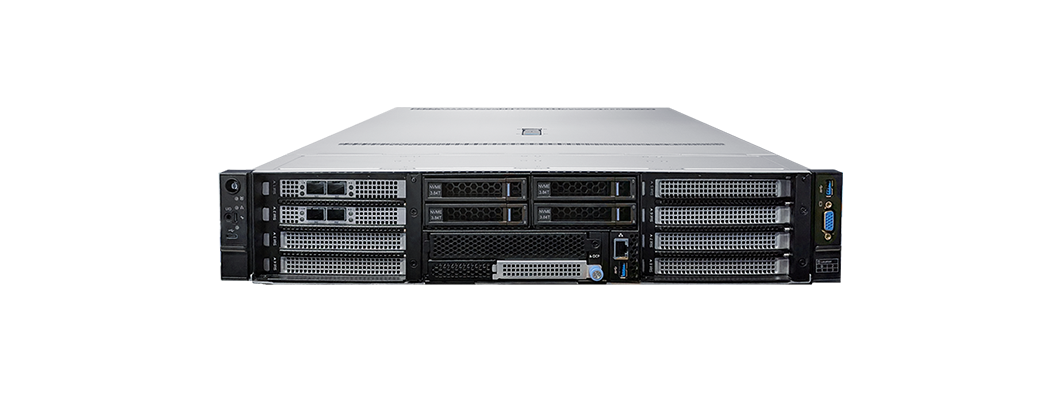

KR2280-E4 delivers the leadership CPU performance and next-generation core density of AMD EPYC 9006 to power agentic and generative AI scale-up in next generation racks and data centers.
 |
Built for HPCThe industry’s only 2U general-purpose product capable of supporting two 600W dual-width GPUs, with four small-form-factor drives and four front-facing accelerator cards to enhance the competitive edge in HPC applications. |
|
|
|
 |
Outstanding PerformanceDelivers excellent performance in applications requiring high clock speeds and core counts, such as computer-aided engineering, materials science, and life sciences. |
|
|
|
 |
Power Efficient ArchitectureAll-new front-cable-access architecture offers the optimal air-cooling solution within an ultra-compact 2U form factor to deliver a lower PUE design, superior economic benefits, and enhanced customer experience. |
Specifications
| Model | KR2280-E4-A0-F0-H0 |
|---|---|
| Form Factor | 2U rack server |
| Processor | 2x AMD EPYC™ 9006 processors |
| Memory | 16x DDR5 RDIMM / MRDIMM |
| Storage | Front: 4x 2.5″ SATA/SAS/NVMe or 4x E3.S Internal: 2x M.2 SSD (PCIe / SATA) |
| Cooling | Air cooling |

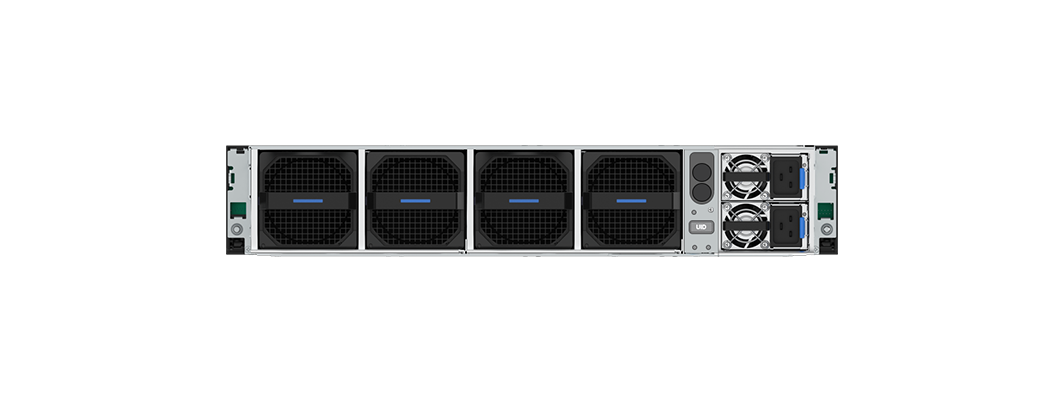

| Fans | 4x 8056 or 4x 8080 fan modules |
| Management | AST2700 |
| Security | 1x TPM 2.0 |
| Power Supply | 2x PSU, 1+1 redundant |
| Dimensions | 447mm (W) x 87mm (H) x 880mm (D) |
