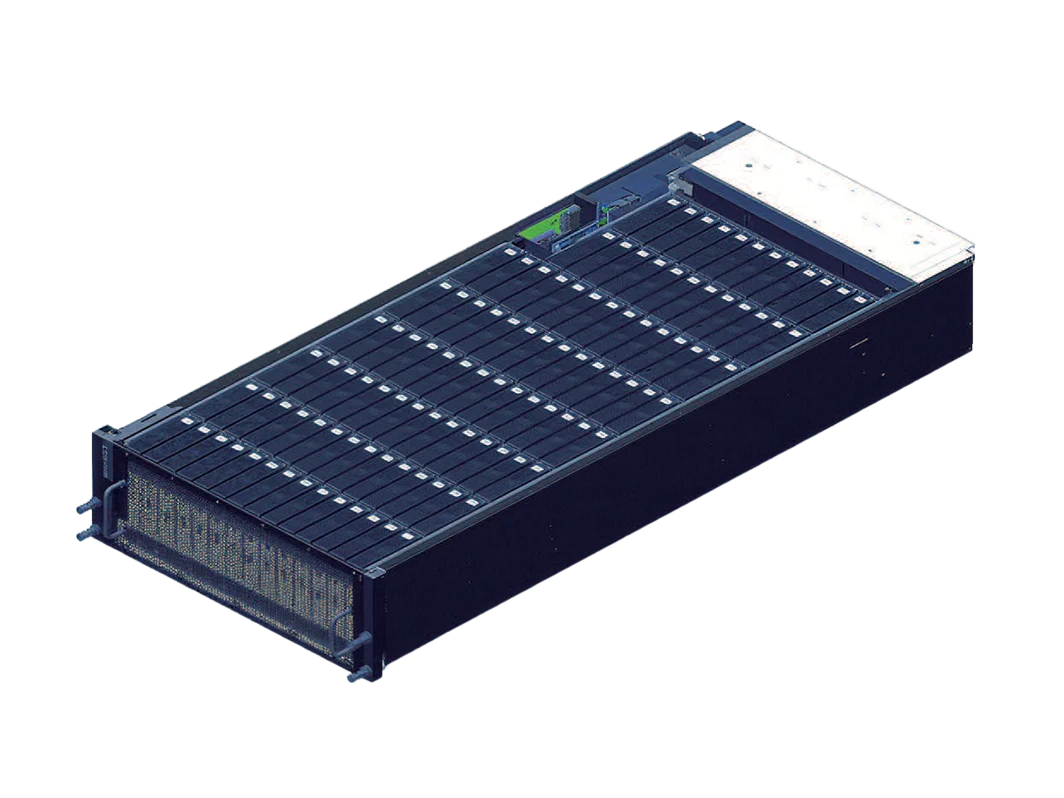

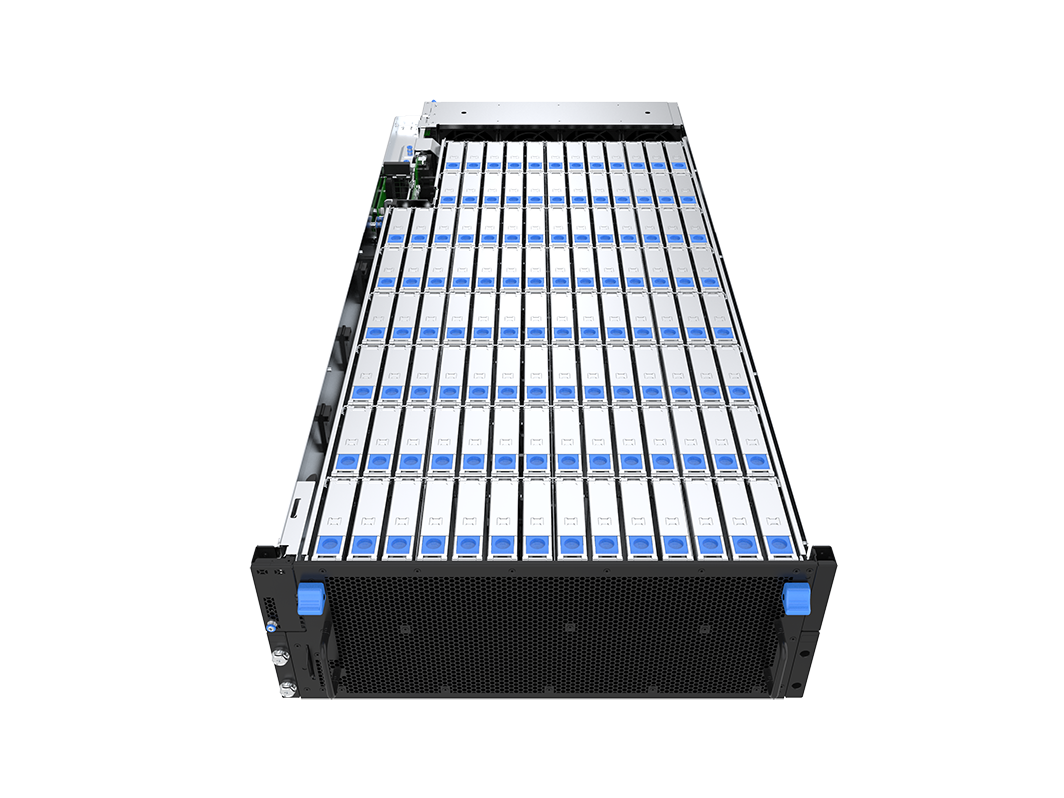

KR4086V2
4U 108-Drive JBOD
- Compact form factor of 4U
- Up to 108x 3.5″ hot-swappable SAS/SATA drives
- High-density storage capacity up to 2.59 PB (24 TB per drive)
KR4086V2 is a 4U ultra-capacity, high-density JBOD product. When the storage capacity of computing nodes is bottlenecked, scale-up can be implemented with JBOD storage based on the existing nodes to quickly build a cost-effective storage solution. The product is suitable for the applications such as HPC, warm and cold data storage, cloud storage, video storage, data backup and archival.
Large Storage Capacity
- 4U chassis can accommodate 108 3.5” drives to deliver an aggregate storage capacity of up to 2,592 TB (24 TB per drive).
Decoupled from Platform
- The JBOD can be used flexibly across many platforms, reducing the costs for testing hardware.
- With data stored to the JBOD storage, compute nodes can focus their resources on delivering performance.
Flexible Storage Architecture
- Storage architecture can be adjusted on demand, with one JBOD chassis shared between multiple hosts, or one or more chassis used for a single host.
Resources
Specifications
| Model | KR4086-B2-A0-R0-00 |
|---|---|
| Form Factor | 4U rackmount JBOD |
| Storage | Up to 108 3.5” SAS3.0/SATA 3.0 hot-swap HDDs and features screw-free drive trays |
| Expander IC | HDDBP1: Broadcom SAS35x36R * 1 (Total 3 HDDBP1 SAS35x36R * 3) |
| HDDBP2: Broadcom SAS35x36R * 1 Rear CM board: Broadcom SAS35x36R * 1 |
|
| MCPU | ASPEED AST2520, support DDR4 SDRAM |
| Ports | 4x SAS 3.0 / SATA 3.0 CONN (Rear), Micro-USB debug port (Rear), Power button/UID button (Rear), RJ45 Management port (Rear), Healthy LED (Rear) |
| Cooling | 4x 9256 fans, supports one fan fail |
| Power Supply | 73.5mm, 1600W, supports 1+1 Redundancy |
| Dimensions | 448mm (W) x 174.3mm (H) x 1050mm (D) |
