Ultra-Dense Peak Performance

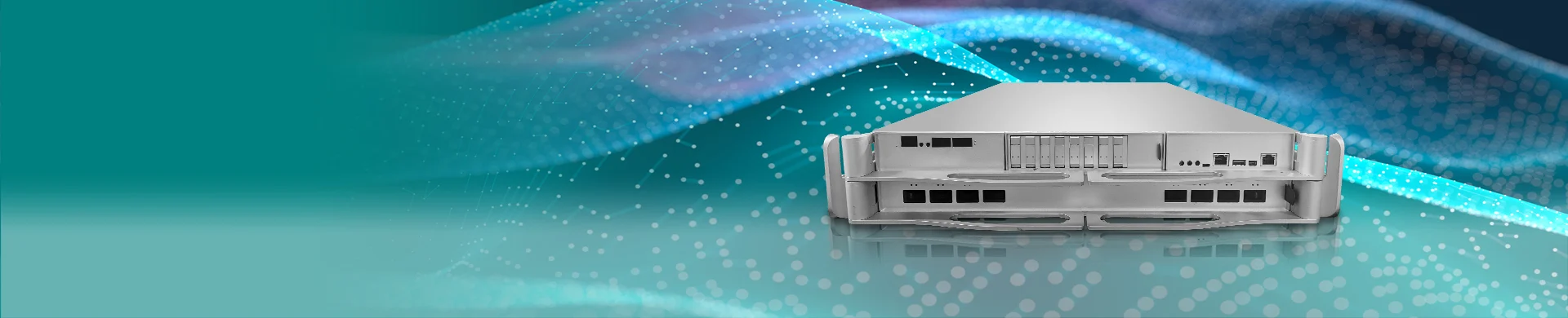

The KL2288-E4 is a high-density AI compute tray designed for next-generation LLM training, inference, and reinforcement learning workloads. Built on the NVIDIA HGX™ Rubin NVL8 reference architecture, it integrates 8x NVIDIA Rubin SXM GPUs with NVLink and NVSwitch for high-bandwidth GPU-to-GPU communication.
Powered by dual AMD EPYC™ 9006 processors, the KL2288-E4 combines high CPU performance, PCIe 6.0 connectivity, and DDR5-8000 memory bandwidth in a compact 2U fully liquid-cooled form factor. It is optimized for AI factories, hyperscale AI farms, Neocloud providers, NCPs, and high-density AI data centers.
 |
Next-Generation GPU & InterconnectSupports 8x NVIDIA HGX™ Rubin NVL8 GPUs with 2.3TB HBM4 memory and 176TB/s total HBM bandwidth Supports NVLink 6 with up to 28.8TB/s total NVLink bandwidth and 8x 800G network connections Delivers up to 400 PFLOPS NVFP4 inference and 280 PFLOPS NVFP4 training performance |
|
|
|
 |
Full Liquid Cooling & High-Density Design100% direct liquid cooling with fanless architecture for sustained high-performance AI workloads 2U compute tray with 24kW MaxP TDP and 54V busbar power architecture Supports L2L in-rack or in-row CDU solutions with 32 LPM inlet flow at 45°C using PG-25 |
|
|
|
 |
High-Performance x86 PlatformDual AMD Venice SP7 CPUs with up to 256 cores and PCIe Gen6 connectivity 32x DDR5-8000 RDIMMs, configurable up to 4TB; 8x E1.S NVMe data drives and 2x front-access M.2 NVMe boot drives Front-access M.2 design enables quick replacement without opening the cover, reducing MTTR |
|
|
|
 |
Enhanced Security with EROT Protection (Optional)Supports EROT (Enhanced Root of Trust) functionality to prevent unauthorized firmware attacks, meeting Zero Trust platform security requirements. |
Specifications
| Model | KL2288-E4 |
|---|---|
| Form Factor | 2U MGX Rack compatible |
| Processor | 2x AMD EPYC 9006, up to 256 cores, 600W/CPU; PCIe 6.0, CXL 3.1 |
| Memory | 32x DDR5 RDIMM DDR5-8000 (1DPC), configurable up to 8TB |
| GPU | NVIDIA HGX™ Rubin NVL8 DLC, 8x 2300W SXM8 GPUs; 2.3TB HBM4 |
| Storage | OS: 2x M.2 NVMe, front-access Data: 8x E1.S NVMe |
| PCIe | 1x FHFL PCIe 6.0 x16 with B4240L |
| Network Interface | 8x OSFP via CX-9; supports IB XDR / 800G Ethernet |
| Power | 54V Busbar |
| Cooling | 100% liquid cooling L2L In-Rack CDU or In-Row CDU; 32 LPM inlet flow at 45°C, PG-25; fanless |
| Ports | Front: 2x USB3.0, 2x RJ45, 1x MicroUSB, 1x MiniDP |
| Management | DC-SCM BMC Module (ASPEED AST2600) |
| Security | TPM 2.0, ERoT (optional) |
| Power Consumption | MaxP: TDP 24kW, EDP 32.8kW MaxQ: TDP 20kW, EDP 27.3kW |
| Dimensions | 448mm (W) x 87mm (H) x 800mm (D) |
| Weight | ~66 kg (rack slide must support system weight of 80 kg) |
