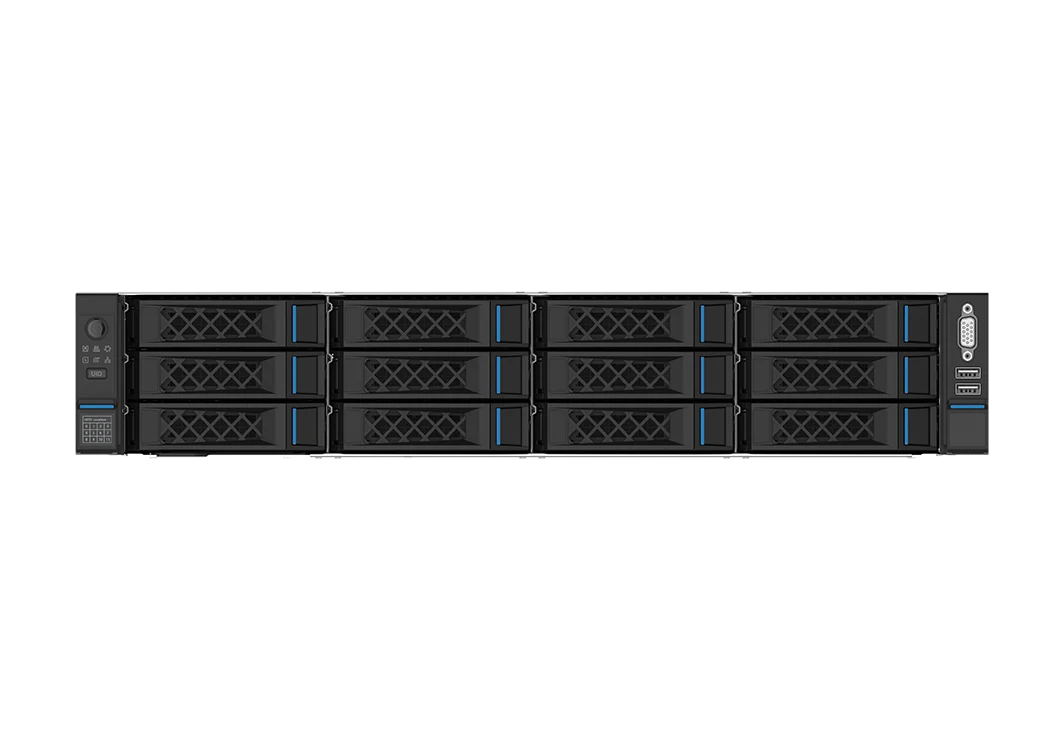

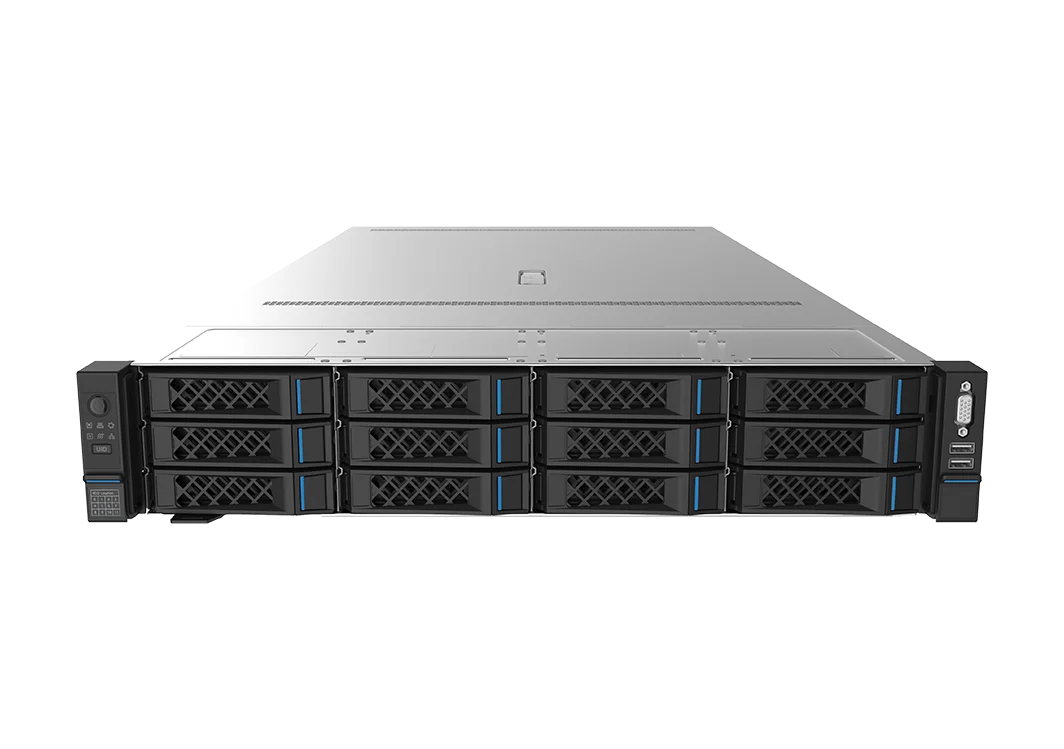

KR2180-E3
Flexible, High-Scalability 2U 1-Socket Server
- 1x AMD EPYC™ 9005 supporting up to 192 cores and TDP 500W with air-cooling
- Scalable, flexible storage configurations
- High scalability, maximizing performance per CPU for ultimate storage and expansion
The KR2180-E3 is a 2U server with one AMD EPYC™ 9005 processor and flexible configurations. It features more cores, a high base frequency, large cache, and high scalability, maximizing performance per CPU for ultimate storage and expansion within a 2U form factor. Ideal for cloud computing/virtualization, big data, distributed storage, and video transcoding applications, this series effectively enhances TCO benefits.
Resources
Specifications
| Model | KR2180-E3 |
|---|---|
| Processor | 1x AMD EPYC™ 9005 processors, TDP up to 500W |
| Memory | Up to 24x 5200 MT/s DDR5 DIMM (12ch), RDIMM, 3DS RDIMM, MRDIMM |
| Storage | Front: 12x 3.5” SAS/SATA/NVMe 24x 2.5” SAS/SATA/NVMe/E3.S 25x 2.5” SAS/SATA/NVMe (21x SAS/SATA + 4x NVMe) |
| Internal: 2x SATA/PCIe M.2 SSD Up to 2x SATA 3.0 M.2 or 2x PCIe 4.0 X4 M.2 (direct attached from CPU) |
|
| Rear: 4x 3.5” SAS/SATA 4x 2.5” SAS/SATA/NVMe |
|
| PCIe | Up to 10x stardard PCIe expansion slots including 2x OCP slots 6x X16 FHHL + 2x X8 HHHL 4x X16 FHHL + 4x X8 HHHL |
| Network Interface | 2x OCP 3.0 Gen5 (supports x8 or x16) |
| Ports | Front: 1x VGA, 1x USB 3.0, 1x USB 2.0/LCD, Healthy LED, UID Rear: supports DC-SCM, 1x VGA, 1x RJ45 for Mgmt, 2x USB 3.0, 1x UART, UID |
| Cooling Options | Air cooling |
| Fans | (6) 6056 Dual-Rotor Fans (N+1) Redundant |
| Management & Security | ASPEED AST2600 Intelligent chassis intrusion detection BMC/BIOS Firmware security Dual-chip dual-standby Digital signature Trusted module TPM 2.0/ TCM |
| Power Supply | 2x 550W/800W/1300W/1600W/2000W/2700W redundant Titanium/Platinum |
| Dimensions | 435mm (W) x 87mm (H) x 800mm (D) |
