KR2266V2
High-Density 2U 2-Socket Storage Server for Data-Intensive Workloads
- 2x 4th Gen Intel® Xeon® Scalable
- Features three-tier storage architecture to deliver balanced computing and storage I/O
- Front storage supports up to 28x 3.5″ SAS/SATA
- I/O expansion supports 8x PCIe with 32GT/s PCIe 5.0 transfer rate, 400Gb networking and low latency
- Supports applications like big data, CDN, hyperconvergence, and distributed storage

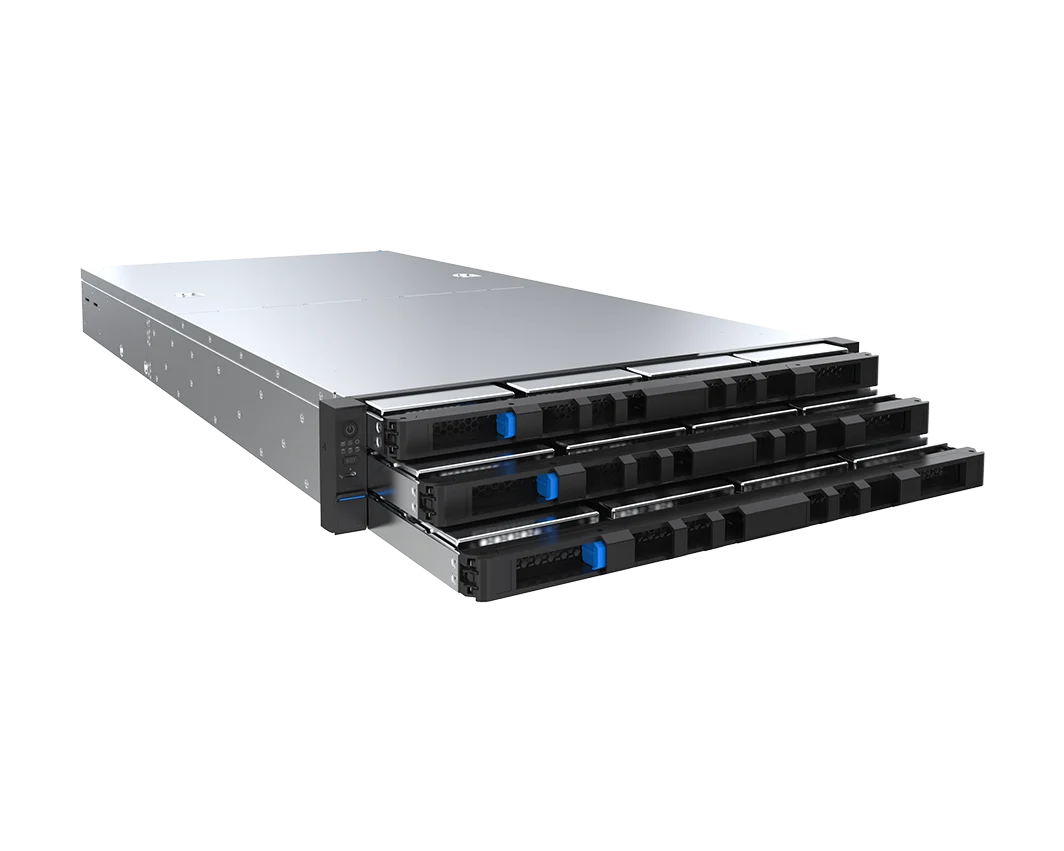

This scalable, high-density storage 2U 2-socket server supports the latest 4th Generation Intel® Xeon® Scalable Processors and is optimized for data-intensive workloads. Its unique three-layer large-form-factor storage tray design supports up to 28 3.5″ drives delivering 504TB scale-up storage capacity. It enables fast bandwidth with CXL 1.1, accelerated performance with up to 8 NVMe SSD or 8x E1.S, and flexible expansion with up to 7 PCIe 5.0 and 2 OCP 3.0 slots.
Resources
Specifications
| Model | KR2266-X2-A0-R0-00 |
|---|---|
| Form Factor | 2U rack server |
| Processor | 1-2x 4th generation Intel® Xeon® Scalable processors, up to 48 core, TDP up to 300W |
| Memory | 16x DDR5 DIMM (8ch, 1DPC), 5200MT/s |
| Storage | Front: Up to 24x 3.5” hot-swappable SAS/SATA |
| Internal: 2x SATA/PCIe x4 M.2 Up to 8x 2.5” SATA SSD |
|

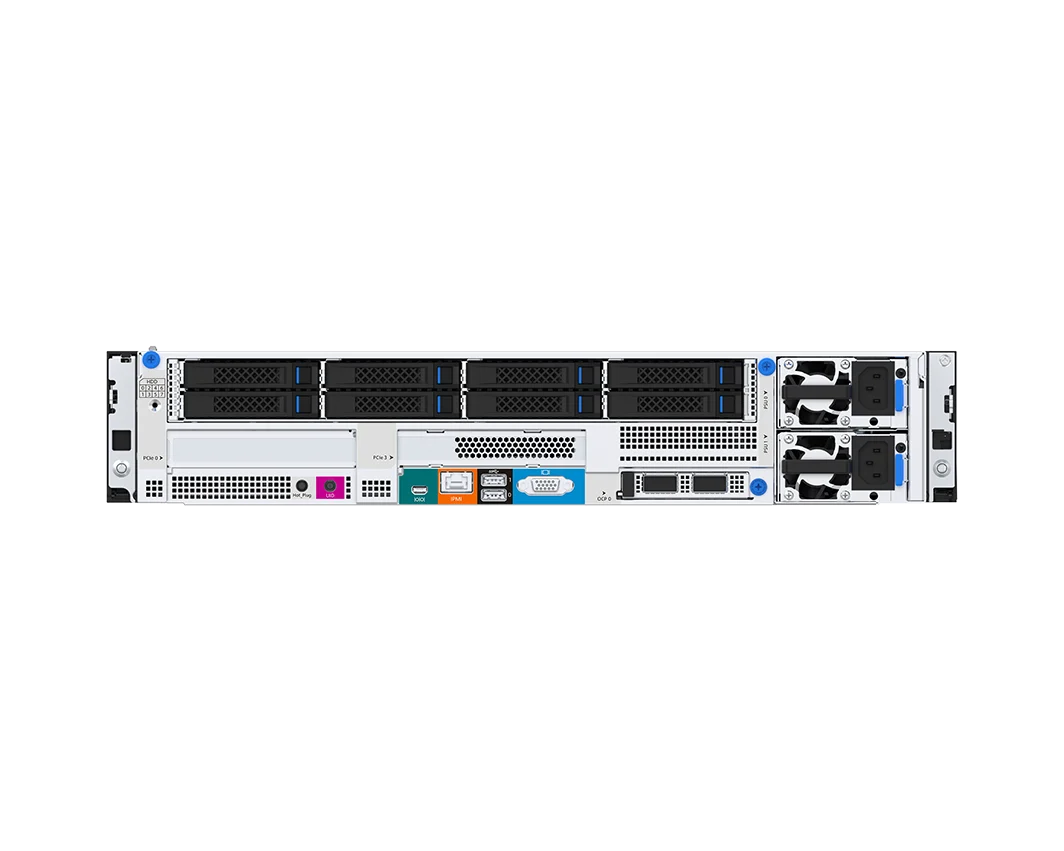

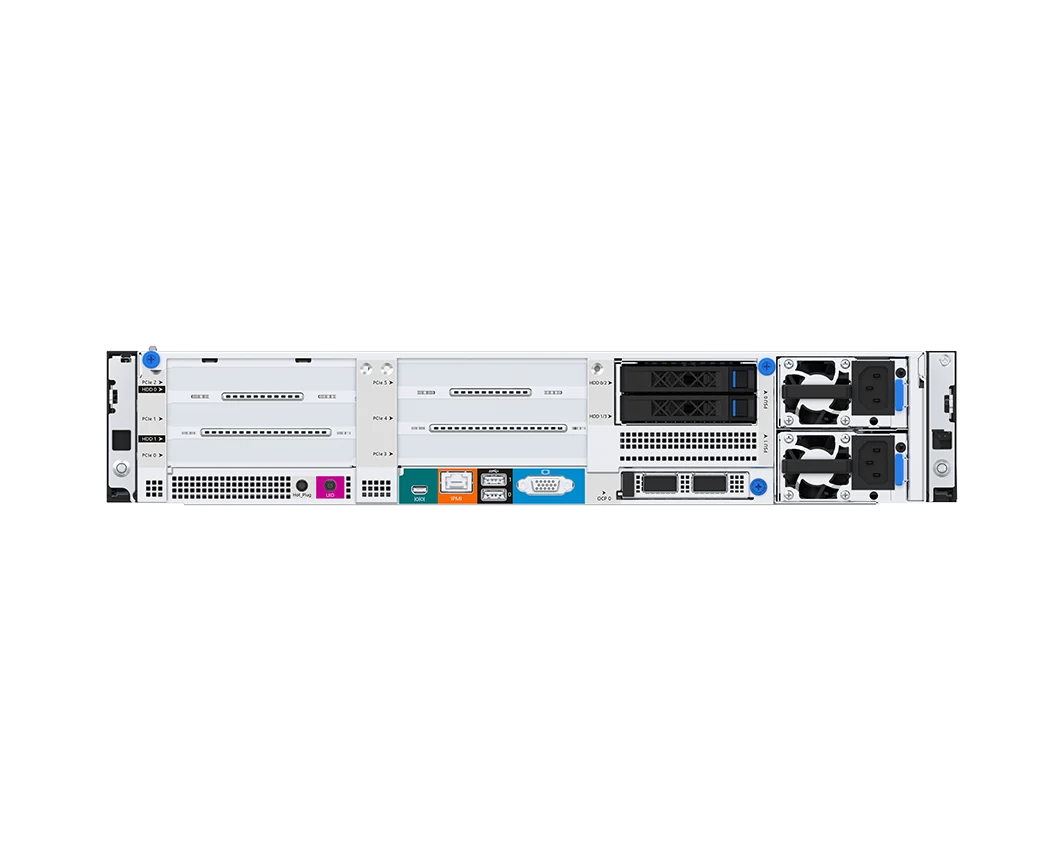

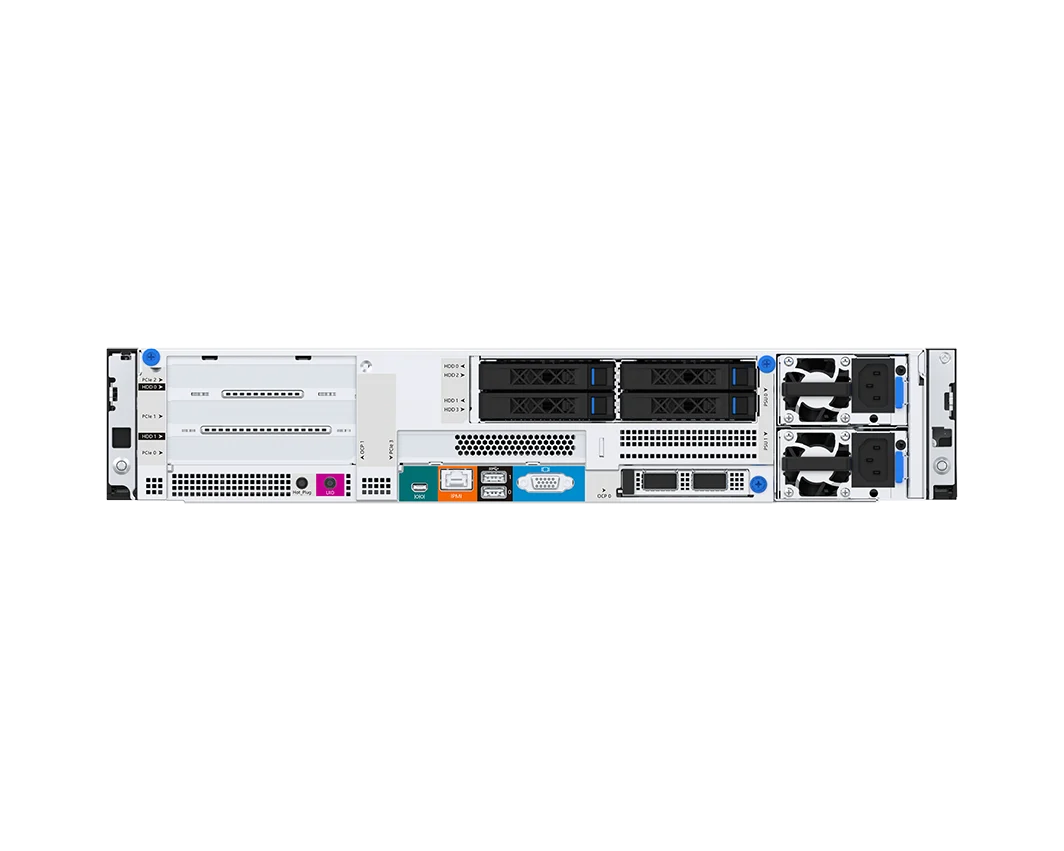

| Rear: 4x 2.5” hot-swappable SAS/SATA/NVMe or 2x 2.5” hot-swappable SAS/SATA/NVMe or 4x 3.5” hot-swappable SAS/SATA + 2x 2.5” hot-swappable SAS/SATA/NVMe or 8x hot-swappable E1.S (5.9mm/9.5mm) or 8x 2.5” hot-swappable SAS/SATA/NVMe |
|
| PCIe | Up to 7x standard PCIe 5.0 slots, incl. 2x OCP 3.0 slot |
| Fan | 6x 6056 dual-rotor fans (6038 single-rotor fans available outside of the US) |
| PSU | (1+1) 800W/1300W/1600W/2000W |
| Management | 1x TPM 2.0 or TCM |
| Dimensions | 447mm(W) x 87.5mm(H) x 866mm(D) |
* Configuration subject to change and is not final
