KR4076V2 | 4U 60-Drive JBOD
KR4076V2
4U 60-Drive JBOD

  • Compact form factor of 4U with depth of only 800mm
  • Up to 60x 3.5″ hot-swappable SAS/SATA drives
  • High-density storage capacity up to 1.08 PB (18 TB per drive)

KR4076V2 is a 4U ultra-capacity, high-density JBOD product. When the storage capacity of computing nodes is bottlenecked, scale-up can be implemented with JBOD storage based on the existing nodes to quickly build a cost-effective storage solution. The product is suitable for the applications such as HPC, warm and cold data storage, cloud storage, video storage, data backup and archival.

Decoupled from Platform

  • The JBOD can be used flexibly across many platforms, reducing the costs for testing hardware.
  • With data stored to the JBOD storage, compute nodes can focus their resources on delivering performance.

Flexible Storage Architecture

  • Storage architecture can be adjusted on demand, with one JBOD chassis shared between multiple hosts, or one or more chassis used for a single host.

Hassle-Free Maintenance

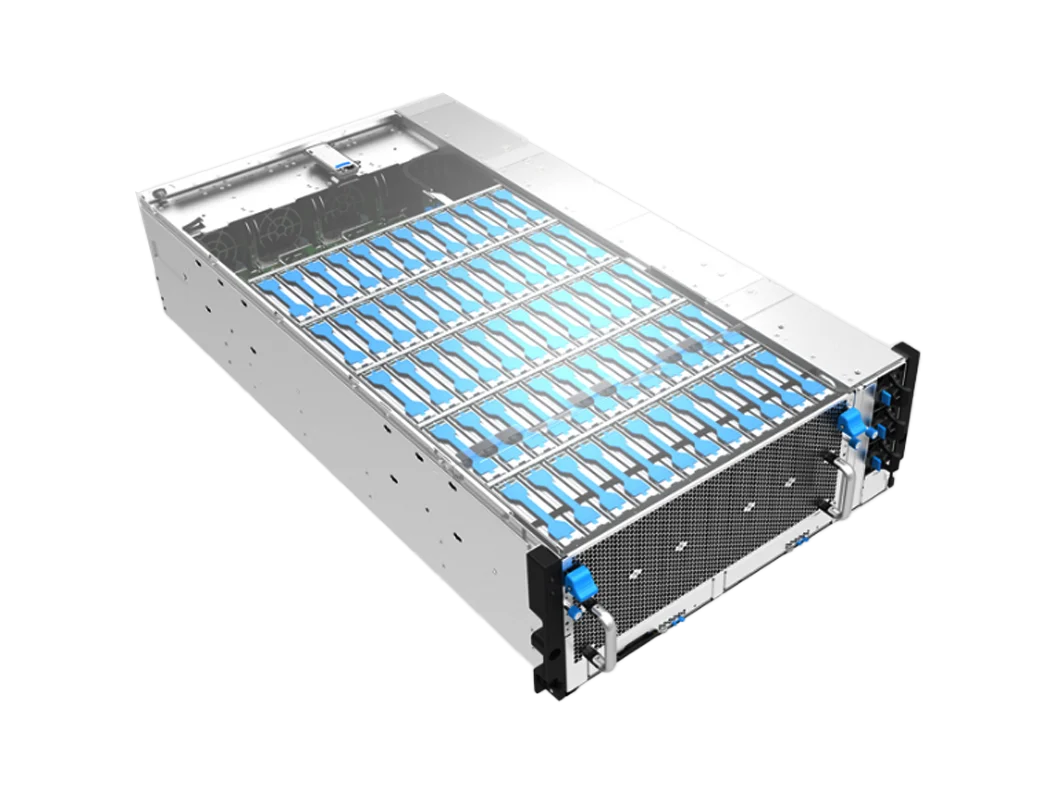

  • Drive bays feature rails with a cable drag chain design and support hot-swap drives. The modular design eliminates the hassle of removing components from the cabinet during maintenance.

Resources

Specifications

Model KR4076-B2-A0-R0-00
Form Factor 4U rackmount JBOD
Storage
  • Up to 60 3.5” SAS 3.0/SATA 3.0 hot-swap HDDs and features screw-free drive trays
  • Used for a single host to support 60 3.5” HDDs (a single or dual expander cards), or shared by two hosts to support 30 3.5” HDDs for each (a single expander card)
  • Allows external cascading expander combination for scaling up storage capacity
I/O Expansion Front and rear cable access openings available

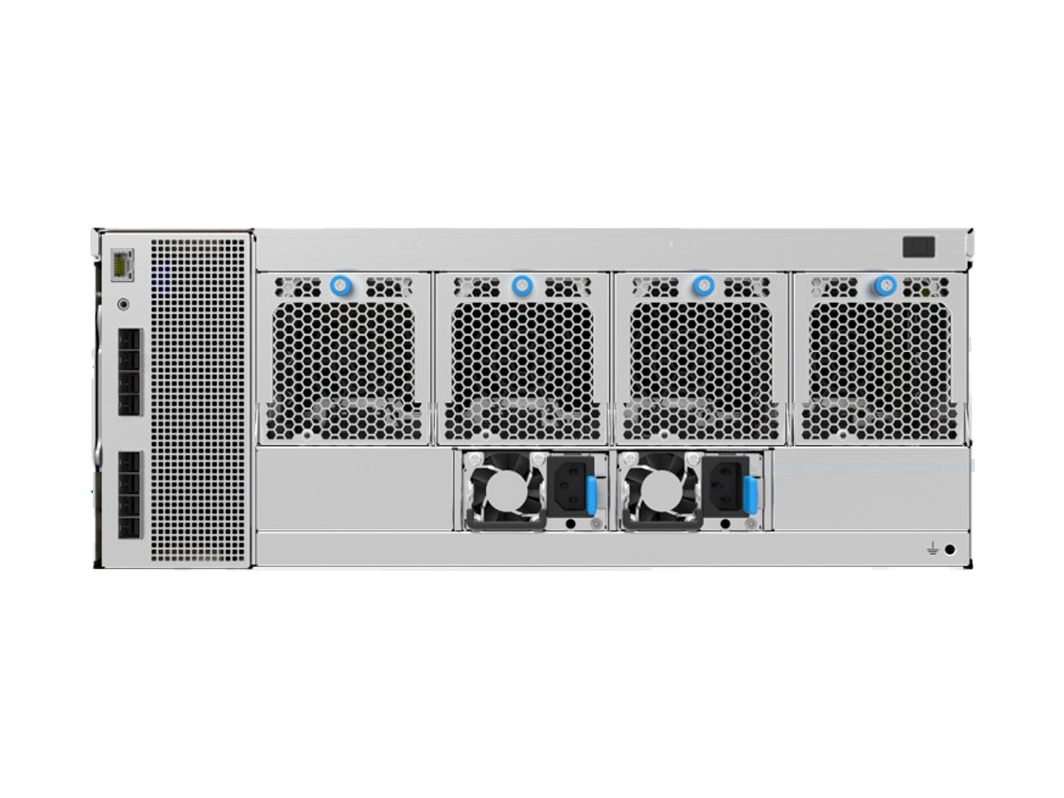

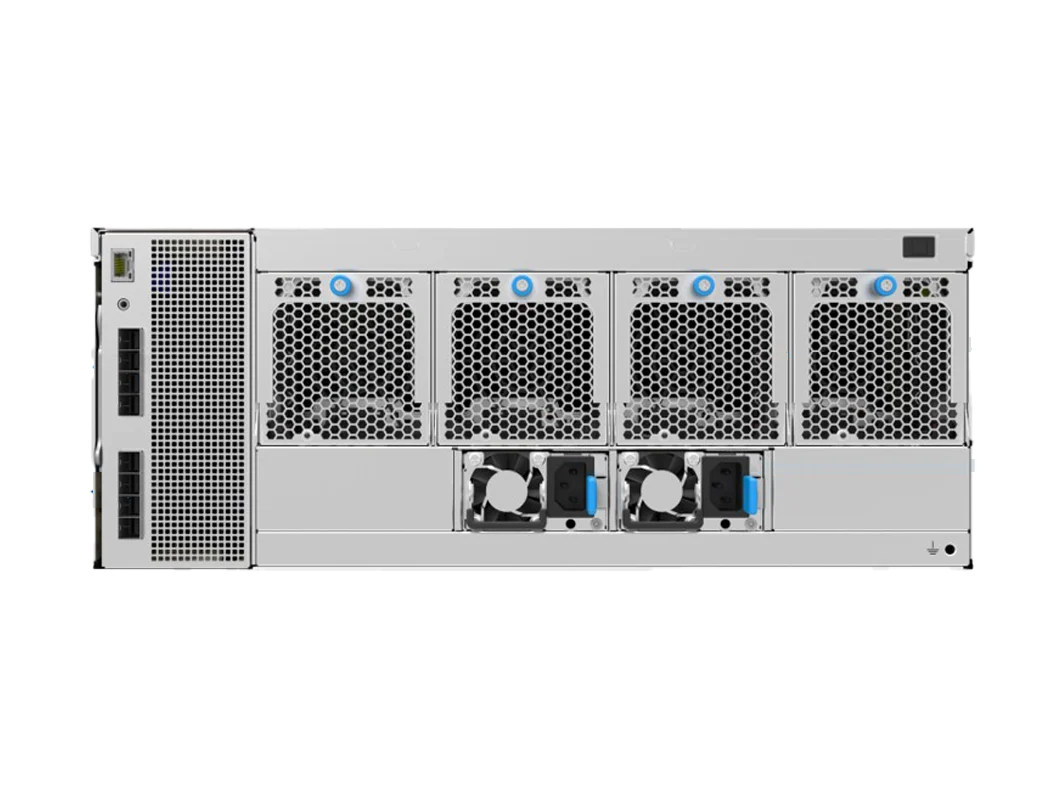

Ports Supports 8 external HD miniSAS connectors (4 primary ones to be connected to the host, and 4 secondary ones for JBOD cascading)
Cooling Hot-swappable fans (N+1 redundancy)
Management & Security Integrated with a separate 1000 Mbps NIC for remote IPMI management
Supports BMC and SES management and powering on/o drives separately
Power Supply Hot-swappable platinum PSUs (1+1 redundancy)
Operating System Microsoft Windows Server 2016/2019, SUSE Linux Enterprise Server 12, Red Hat Enterprise 7, CentOS 7, Ubuntu, etc.
Dimensions & Weight 447mm (W) x 174mm (H) x 800mm (D) without mounting ears, 89kg with all drives installed
Operating Temperature 5°C to 35°C
