10U High-Performance AI Training Server

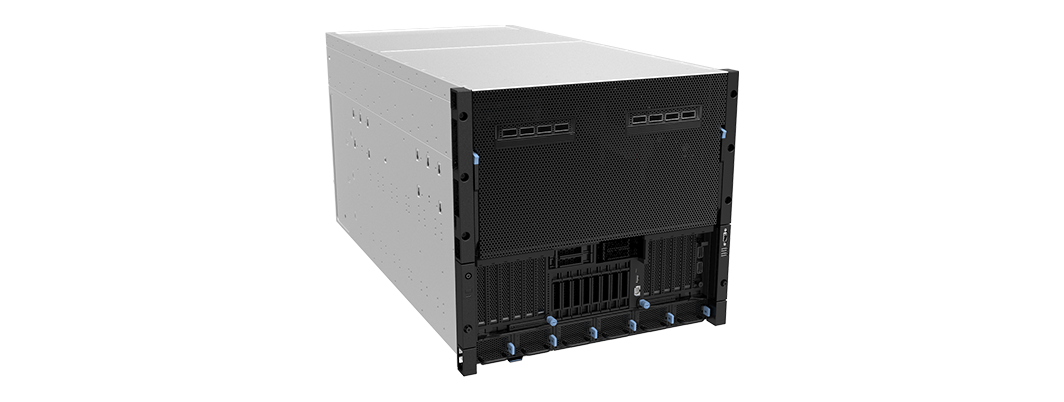

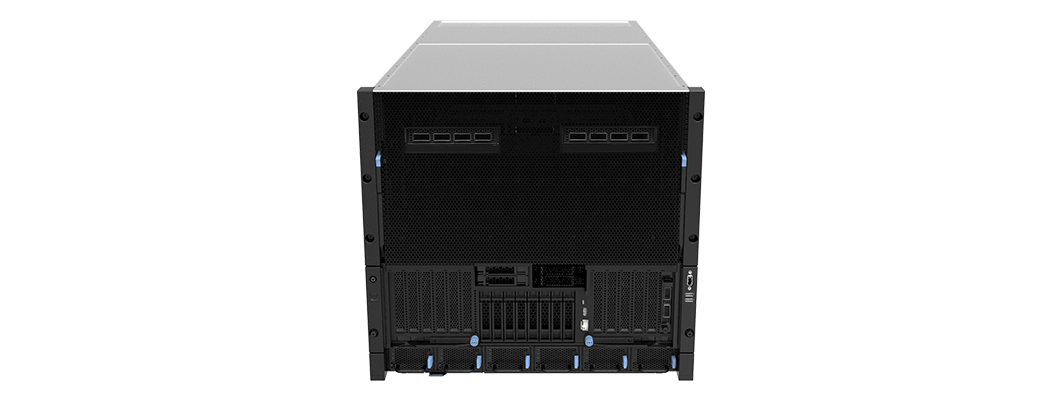

KR9288 is a 10U high-performance heterogeneous accelerated server, featuring a fully modular design and supporting an 8-GPU NVLink module based on the latest NVIDIA Blackwell platform. It includes support for OAM accelerators like Intel® Gaudi® and AMD Instinct™ series modules. The entire system can support 2 CPUs with a TDP of 500W each and 8 GPUs with a TDP of 1000W each.
 |
Stable, Efficient High PerformanceN+1 redundant power supply ensures system reliability in case of a single PDU power failure Modular, scalable and power-efficient design |
|
|
|
 |
Robust I/O ExpansionSupports up to 12 full-height PCIe slots (10 DPUs) Supports up to 10x hard drives |
Available Models
|
|
|
|---|---|---|
| Form Factor | 10U rack server | |
| GPU | NVIDIA Blackwell 8-GPU (HGX B200) | |
| Processor | 2x Intel ® Xeon® 6 | 2x AMD EPYC™ 9005 |
| Memory | 32x DDR5 6400MT/s DIMMs | 24x DDR5 6000MT/s DIMMs |
| Storage | 16x SATA SSD / NVMe U.2/U.3 / NVMe E3.S 2x SATA/NVMe M.2 |
|
| PCIe | 14x PCIe 5.0 x16 slots, support Bluefield-3 series NIC | |
| Network Interface | Optional 1x OCP 3.0, Support NCSI | |
| Ports | 3x USB 3.0, 1x VGA, 1x RJ45, 1x MicroUSB, 1x Type-C | |
| Cooling | Air cooling | |
| Management & Security | ASPEED AST2600, TPM 2.0 (Trusted Platform Module) | |
| Power Supply | 2x 12V 3200W and 6x 54V 3300W Titanium | |
| Dimensions | 447mm (W) x 440mm (H) x 860mm (D) | |
