K22-E3
Highest VM Density in 1-Socket Design
COMING SOON (Q4 2024)
- 1x AMD EPYC™ 9005 per node, up to 192 cores, supports max TDP with air cooling
- 12x DDR5 DIMM
- Up to 12x 2.5″ SSD
K22-E3 is a 2U 2-node server with AMD EPYC™ 9005 delivering single-socket performance up to 500W per node with air cooling. It supports up to 12x 2.5″ SSDs providing power and performance density as well as thermal and energy efficiency.
Optimized for maximum energy savings, it utilizes Extended Volume Air Cooling (EVAC) Heat Sink & HDD backplane to lower fan power expenditure, and Power Capping to achieve machine-level efficiency.
Specifications
| K22-E3-A0-R0-00 | |||
|---|---|---|---|
| Node | Processor | 1x AMD EPYC™ 9005 per node, up to 500W TDP with air cooling | |
| Memory | 12x DDR5 DIMMs, 6000MHz @ 1DPC, supports RDIMM | ||
| Storage | Up to 12x 2.5″ NVMe/SATA SSD, internal 2x M.2 | ||
| Boot Device | 2x 2280/22110 SATA/PCIe x4 M.2 | ||

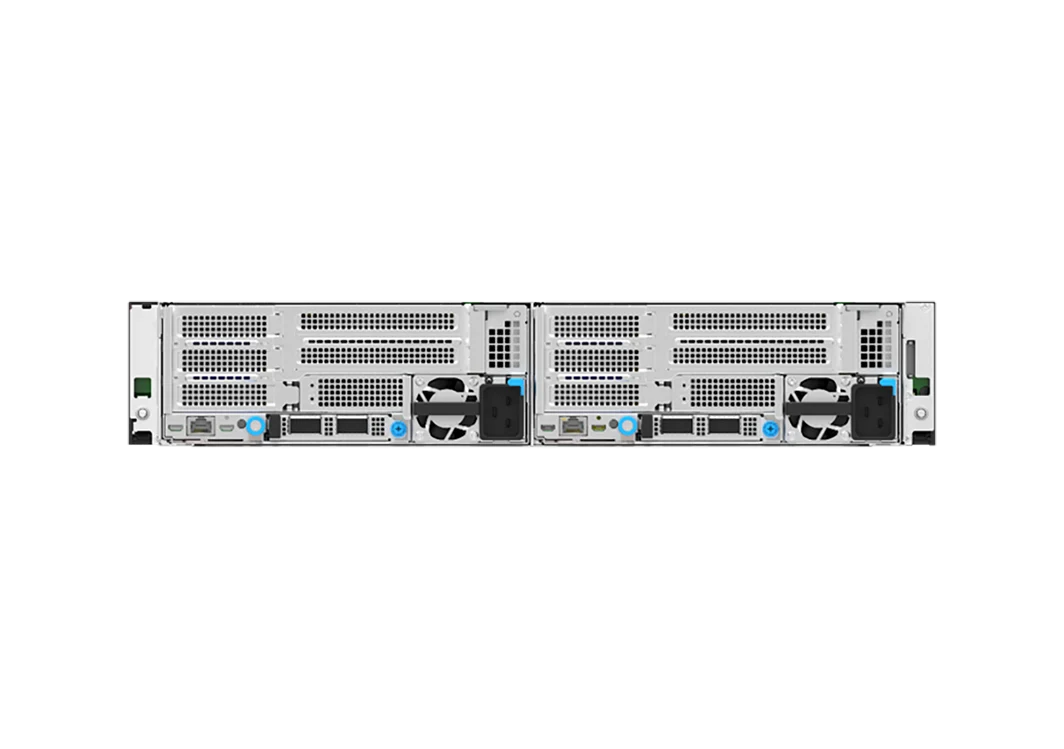

| Rear I/O | 1x RJ45, 1x UID/RST button, 1x micro USB for debug, 1x micro USB | ||
| PCIe | Up to 2x PCIe 5.0 x16 HHHL + 2x PCIe 5.0 x8 HHHL | ||
| Network Options | 1x SFF OCP 3.0 Gen5 x16, supports NCSI | ||
| Management | AST 2600, IPMI/Redfish | ||
| Security | Supports TPM 2.0 | ||

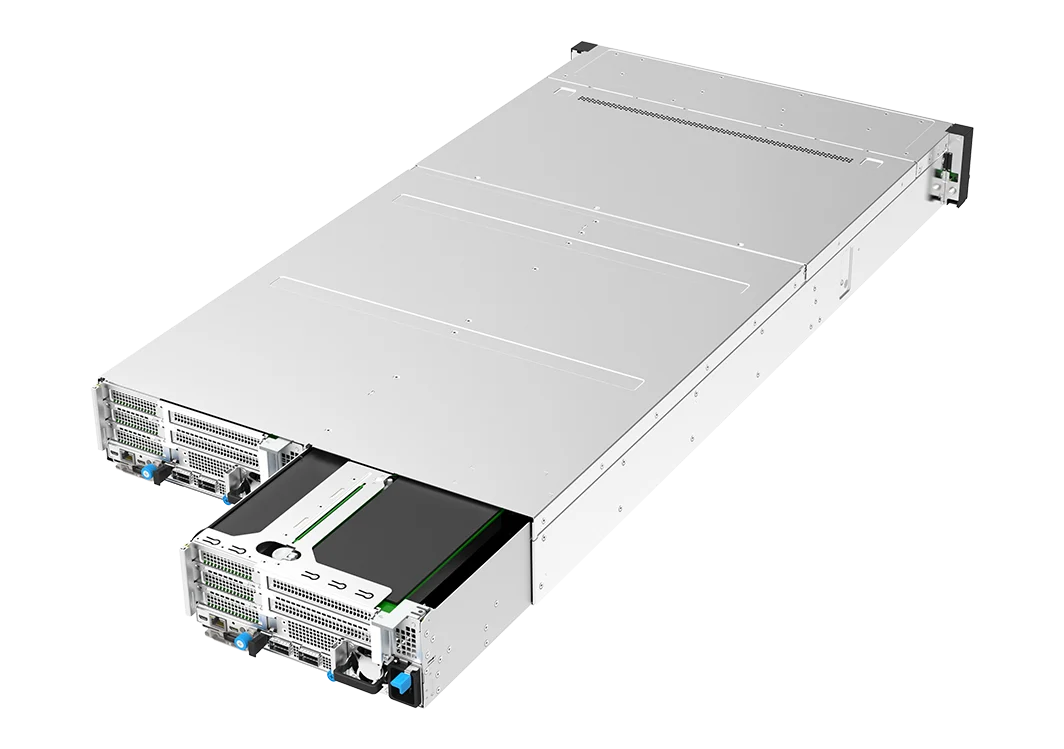

| Chassis | Form Factor | Dual hot-pluggable systems (nodes) in 2U | |
| Dimensions | 447mm (W) x 88.2mm (H) x 880mm (D) | ||
| Fan | (6) 6056 dual rotor fan, N+1 rotor redundancy | ||
| PSU | (2) 2000 PSUs (Platinum/Titanium), supports 1+1 redundancy | ||
* Configuration subject to change and is not final
