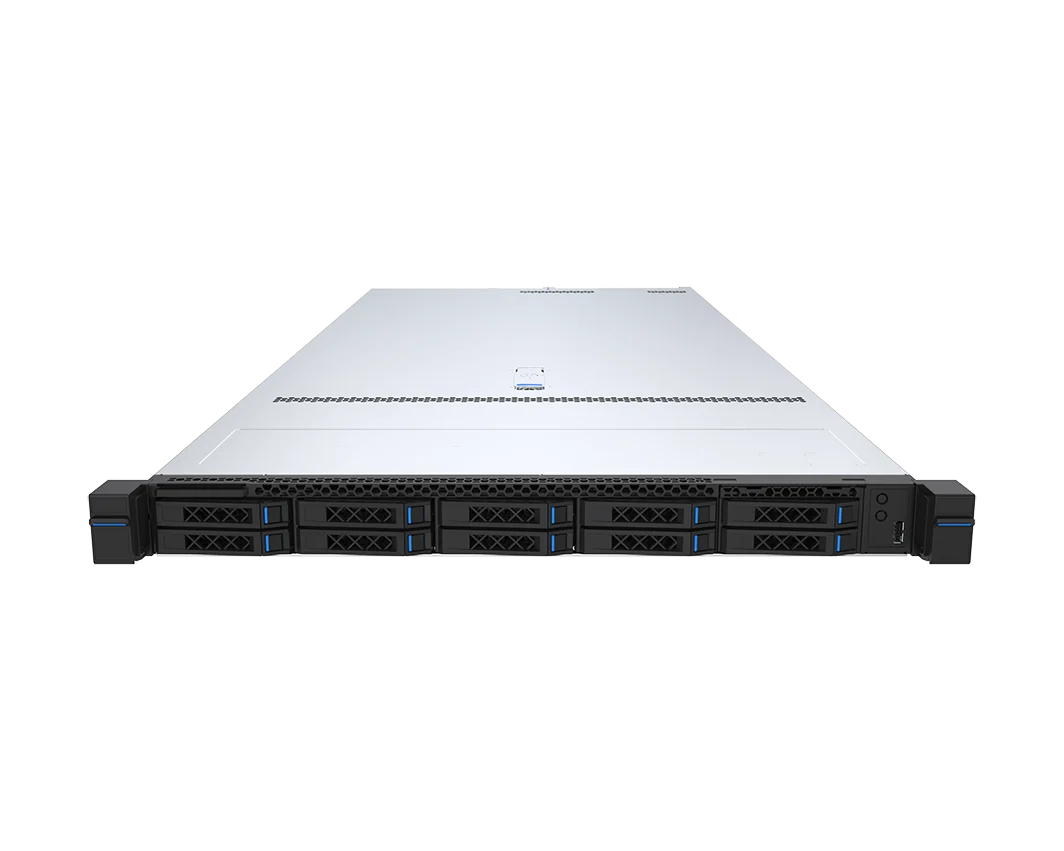

KR1180-X3
High-Density 1U 1-Socket Computing Server
- 1x Intel® Xeon® 6 processor supporting E-Core/P-Core dual platform for energy efficiency vs performance density
- Flexible storage configurations with up to 12x 2.5″ or 4x 3.5″ drives with 4x E3.S
KR1180-X3 1U server has one Intel® Xeon® 6 processor and delivers high performance compute with flexible storage configurations. It delivers a high performance-to-power ratio, presenting a cost-effective option for customers and addressing TCO and cross-NUMA access challenges. This system was designed for the demands of Internet, cloud computing, and enterprise markets, and is suited for distributed storage, big data, and virtualization workloads.
Resources
Specifications
| Model | KR1180-X3-A0-R0-00 |
|---|---|
| Processor | 1x Intel ® Xeon® 6500/6700 series, up to 350W TDP |
| Memory | 16x DDR5-6400 MT/s RDIMMs / MCR DIMMs |
| Storage Drives | 4x 3.5” SAS/SATA/NVMe + 4x E3.S SSD 12x 2.5” SAS/SATA/NVMe Internal: 2x SATA/PCIe M.2 |
| PCIe | 1x PCIe 5.0 x16 FHFL slots + 2x PCIe 5.0 x16 HHHL slots |
| Network Interface | 1x OCP 3.0 x16 |
| Ports | Front: 1x VGA, 1x USB3.0, 1x USB Type C, 1x UID, Rear: 1x VGA, 1x RJ45 for Mgmt, 2x USB 3.0, 1x UART, 1x UID |
| Cooling Options | Air cooling |
| Fans | (8) 4056 hot swap fans (N+1 Redundant) |
| Management & Security | ASPEED AST2600, 1x TPM 2.0 |
| Power Supply | 2x 800W/1300W/1600W/2000W redundant Titanium/Platinum |
| Dimensions | 438mm (W) x 43.05mm (H) x 780mm (D) |
