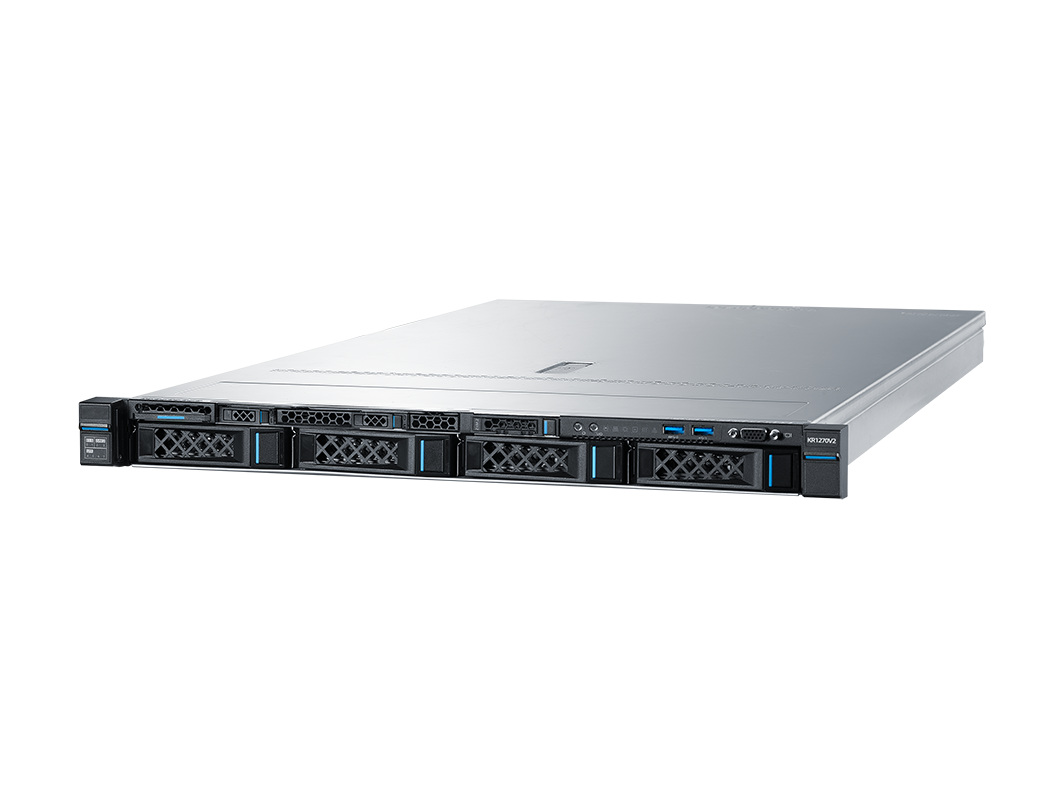

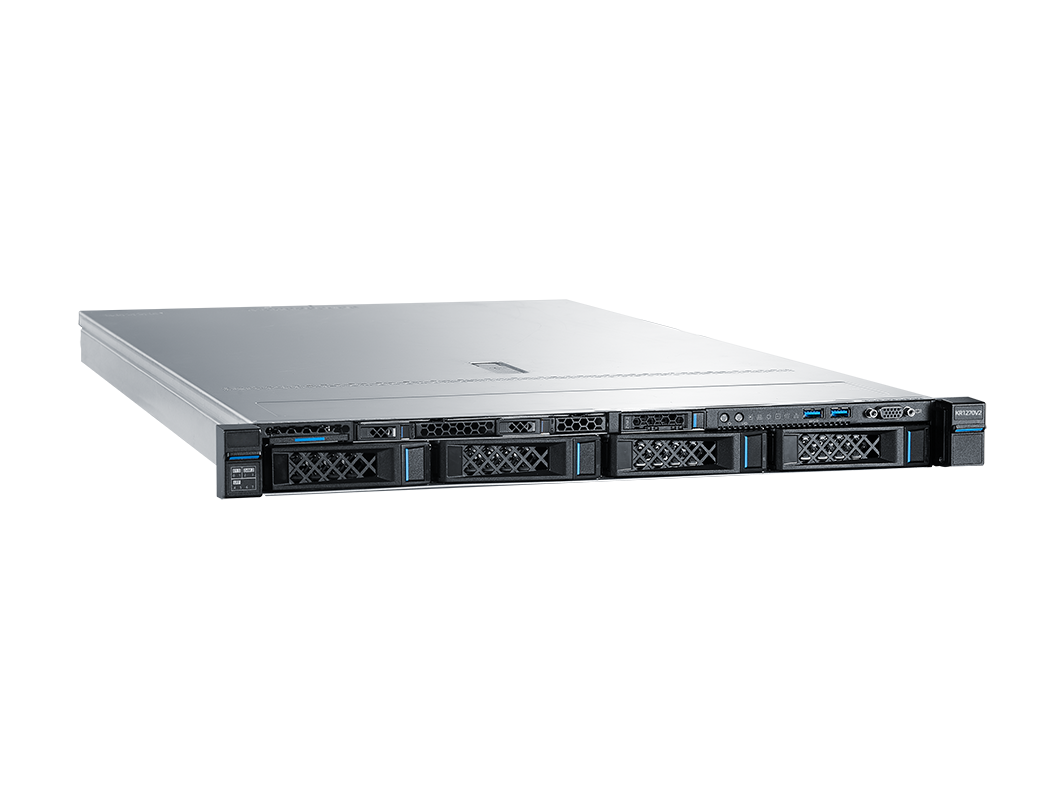

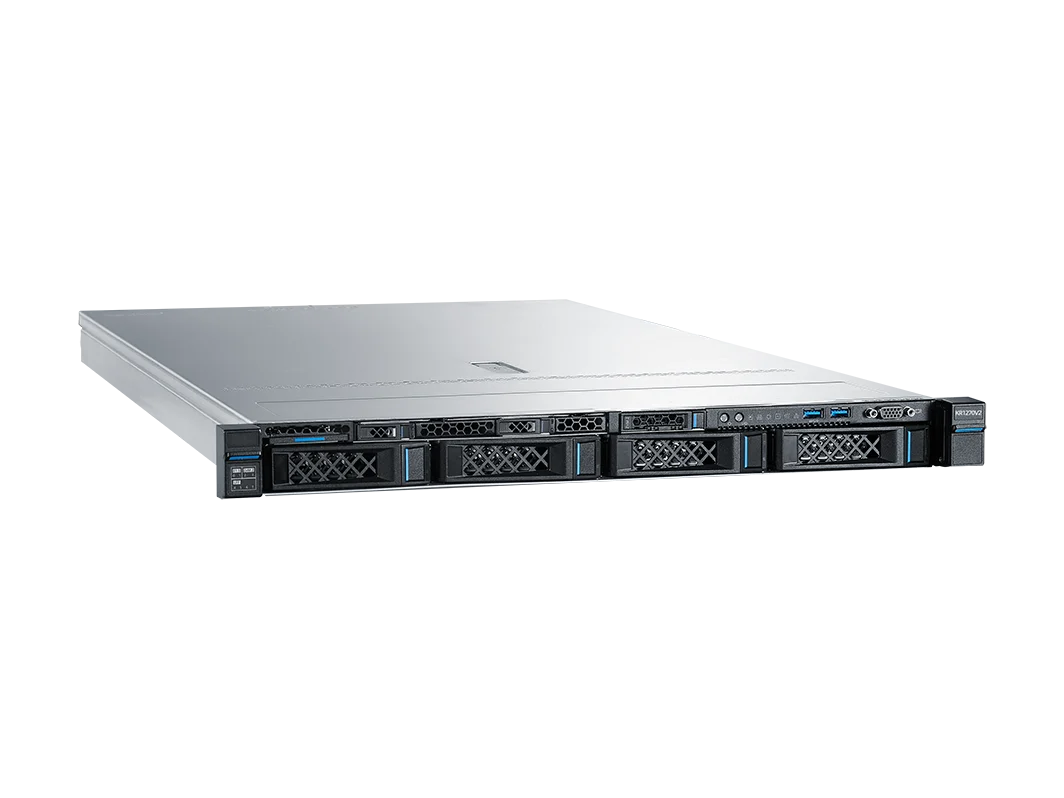

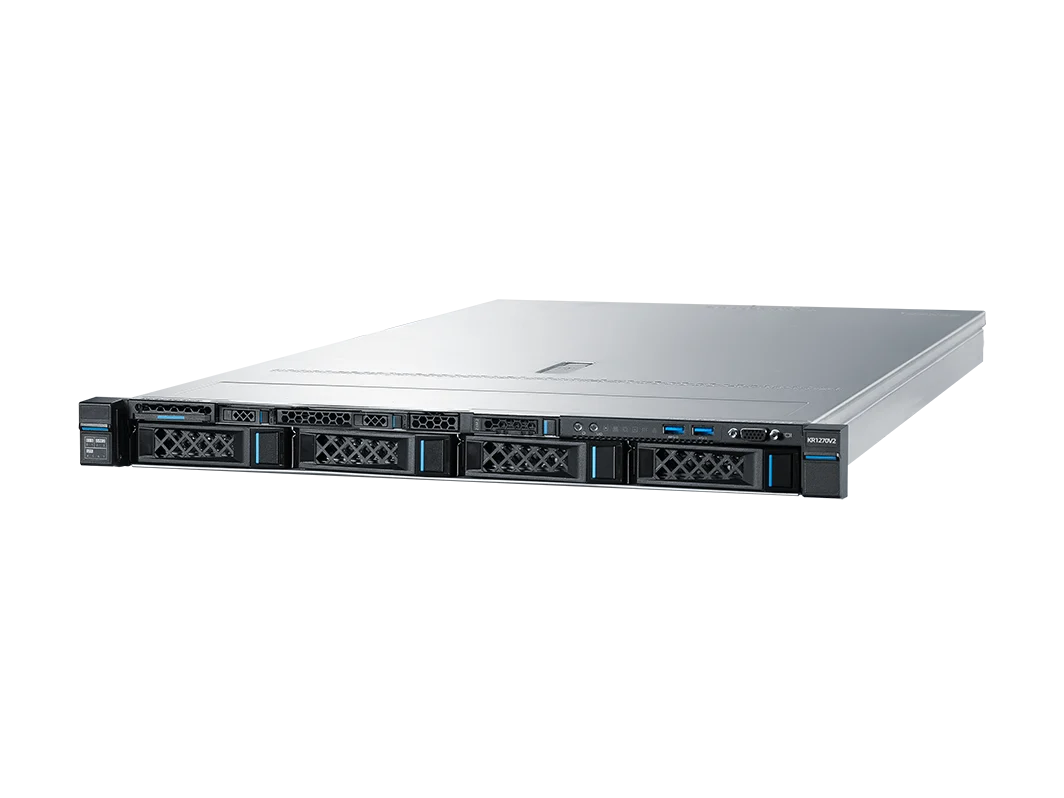

Built on a streamlined design philosophy, the KR1270V2 series server is a cost-effective 1U 2-socket rack server that features the 4th/5th generation Intel® Xeon® Scalable processors. With efficient computing power and ultimate scalability, the server achieves an optimal balance between overall performance and power consumption, and meets the requirements of light-weight workloads, making it an ideal choice for high-density data centers and such mainstream computing scenarios as cloud computing and virtualization.

High scalability, performance, and efficiency

• Equipped with 4th/5th generation Intel® Xeon® Scalable processors, the server supports up to 32 cores per CPU, a TDP of up to 225W, a max base frequency of 3.9GHz, and 3 UPI links per CPU at 20GT/s per link, delivering improved processing performance.
• The server supports up to 4 PCIe 4.0 expansion slots (including 1 RAID mezz slot), meeting the expansion requirements of light-weight workloads.

Streamlined design and flexible configuration

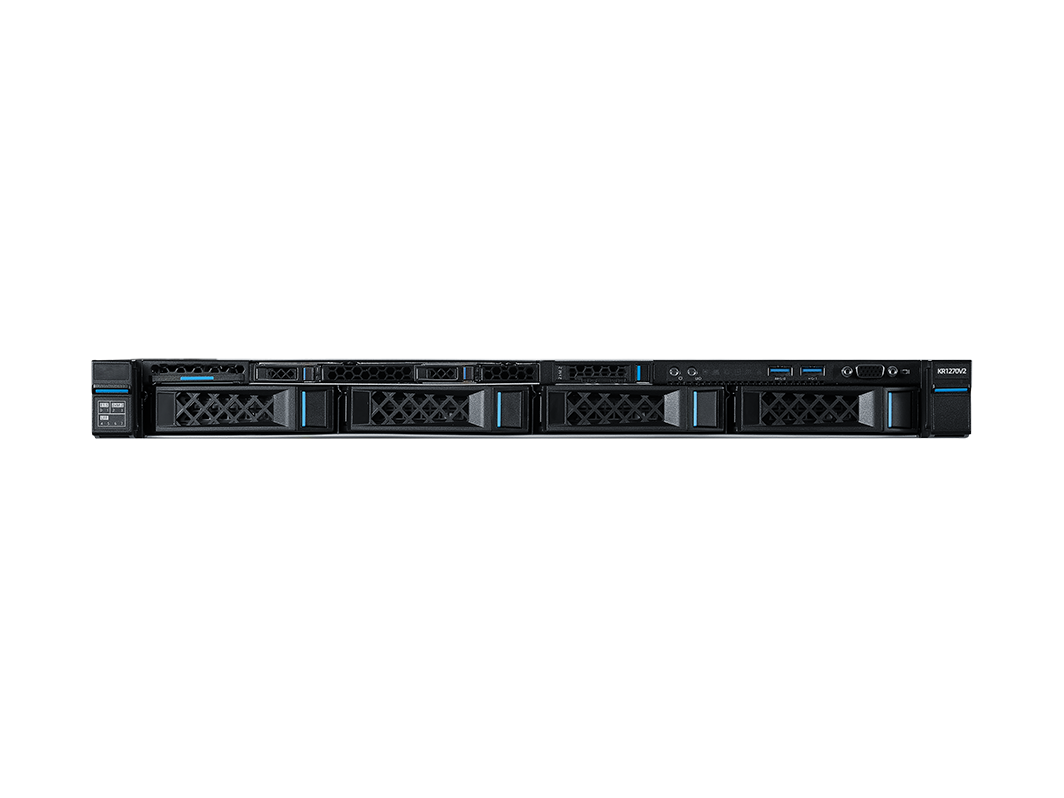

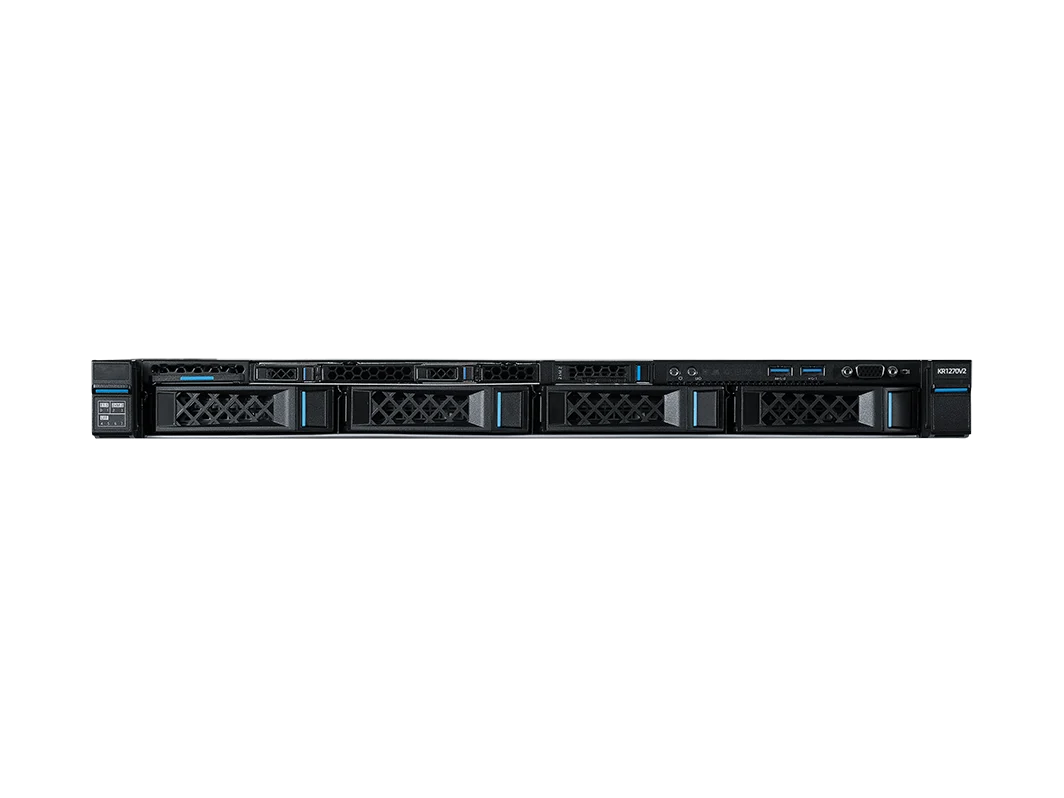

• The server supports 4 front 3.5-inch drives, 2 front M.2 SSDs and 2 front E1.S SSDs or 10 front 2.5-inch SAS/SATA/NVMe drives, providing an elastic storage space so that users can expand the capacity to the required value.

Security, reliability, and energy conservation

• Its intrusion alert feature improves the physical security. The optional security bezel with a latch prevents unauthorized users from installing or removing drives, protecting local data.
• The server adopts chip-level redundancy design of core components like BIOS and BMC, ensuring that the system can start by switching to the standby chip. It also supports online upgrade of the BMC without suspending services, guaranteeing service continuity.
• Fully-optimized cooling design, energy-efficient cooling fans, and power capping and staggered spin-up technologies minimize the system’s power consumption.
• With focus on environmental protection, key components of the server meet lead-free requirements (RoHS), and all packaging materials are recyclable.
