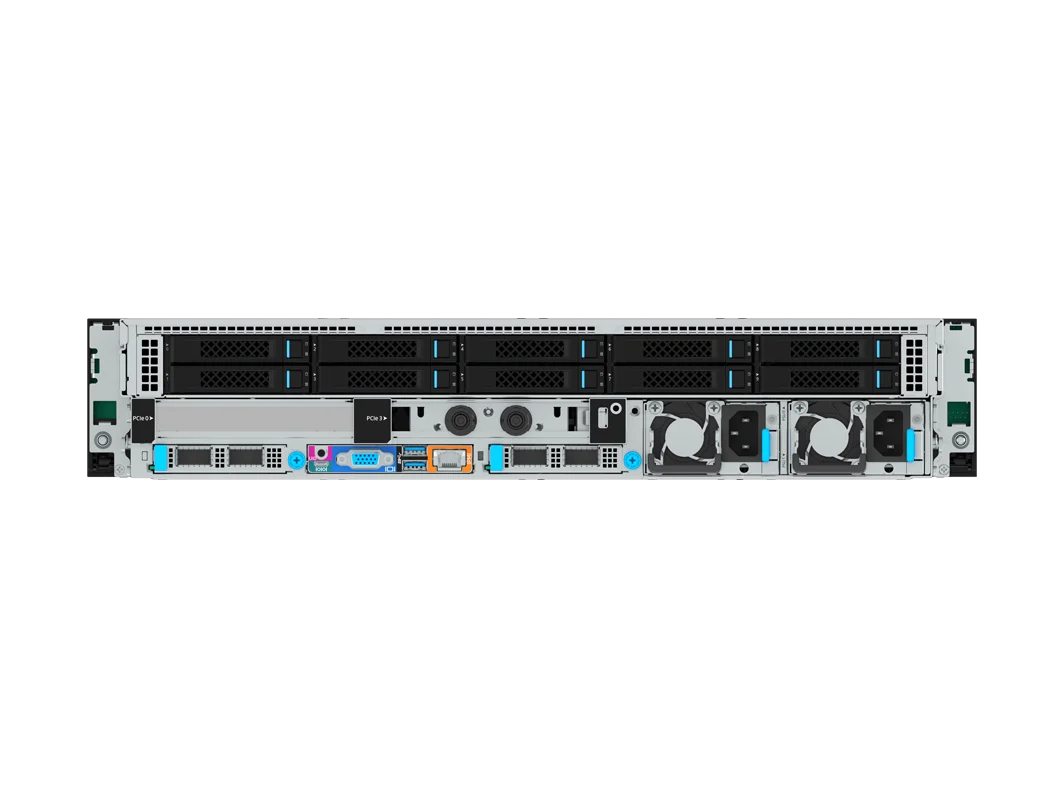

  • KR2280-X2 Rear 10SFF 1PCIe
    KR2280-X2 Rear 10SFF 1PCIe
  • KR2280-X2 8SFF
    KR2280-X2 8SFF
  • KR2280-X2 9LFF
    KR2280-X2 9LFF
  • KR2280-X2 16SFF
    KR2280-X2 16SFF
  • KR2280-X2 Rear 6PCIe
    KR2280-X2 Rear 6PCIe

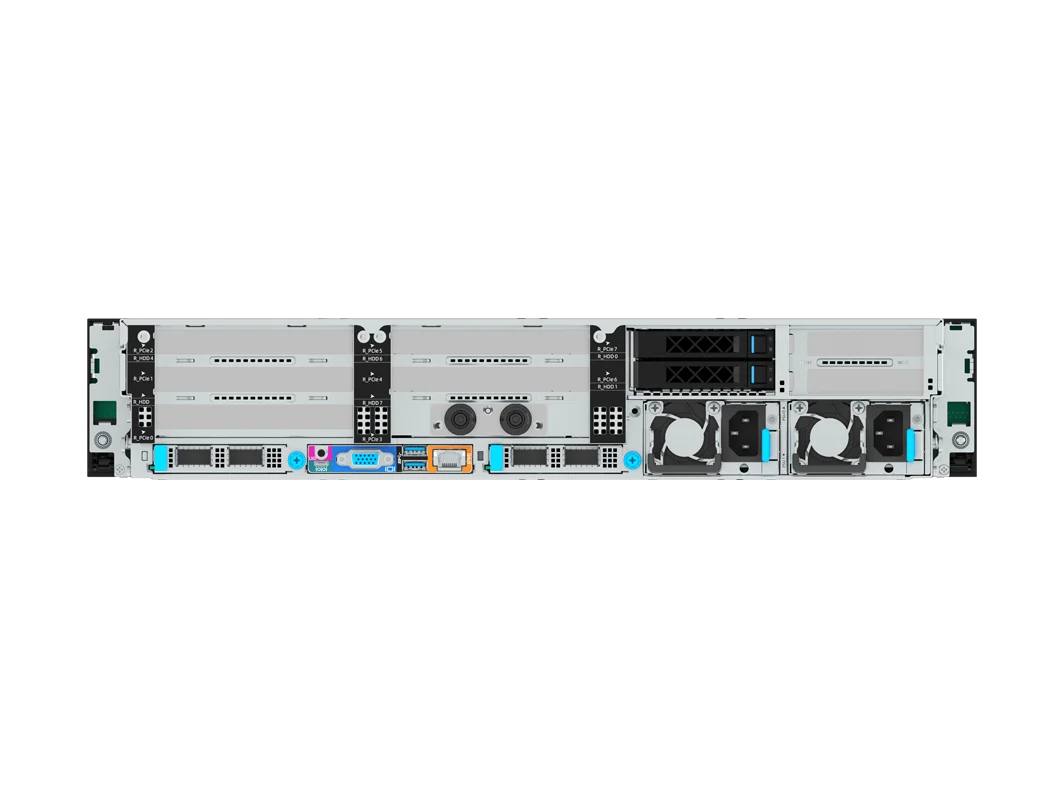

  • KR2280-X2 Rear 8PCIe 2SFF
    KR2280-X2 Rear 8PCIe 2SFF
  • KR2280-X2 Rear 10PCIe
    KR2280-X2 Rear 10PCIe

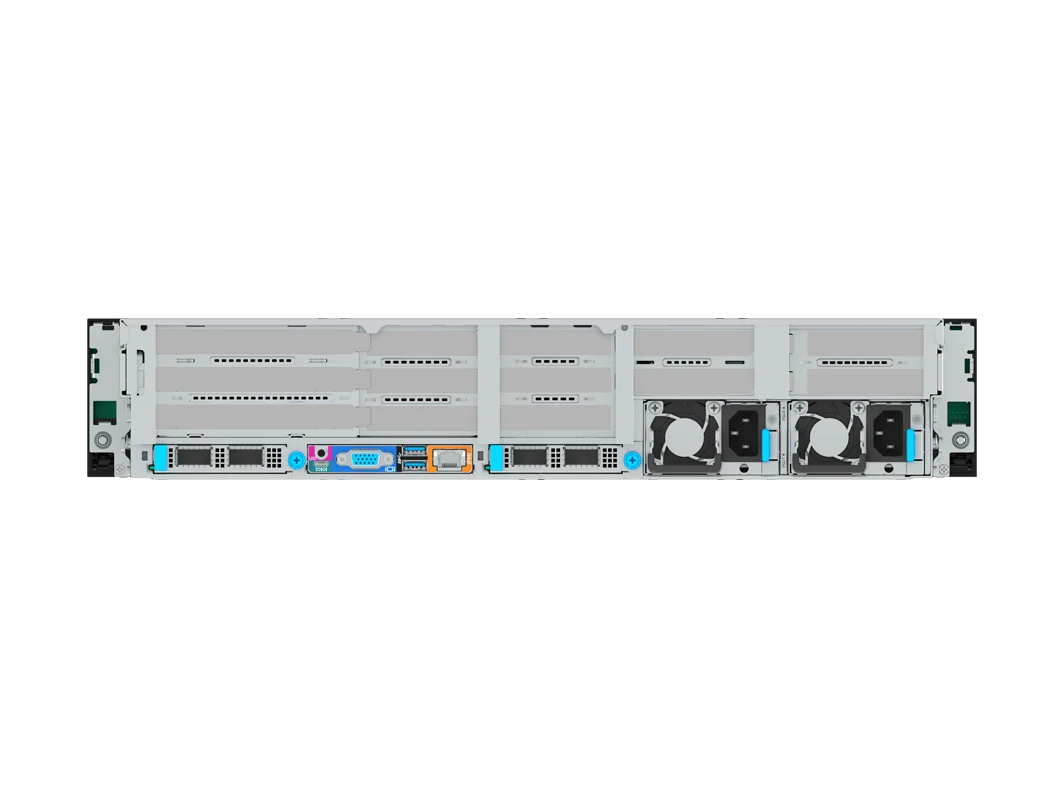

  • KR2280-X2 Rear 13PCIe
    KR2280-X2 Rear 13PCIe
  • KR2280-X2 Rear 4GPU 2PCIe
    KR2280-X2 Rear 4GPU 2PCIe
  • KR2280-X2 Rear 8PCIe 2M.2
    KR2280-X2 Rear 8PCIe 2M.2
KR2280-X2
2U 2-Socket Server with Flexible Front/Rear Configurations

  • 2x 4th Gen Intel® Xeon® Scalable
  • Front storage configurations include support of up to 12x 3.5” SAS/SATA/NVMe, 24x 2.5” SAS/SATA/NVMe, 25x 2.5” SAS/SATA, or 24x E3.S
  • Rear supports up to 13 standard PCIe slots


KR2280V2 with 4th Gen Intel® Xeon® Scalable provides high-density performance, scalability, and flexible front and rear configurations to support a wide variety of compute-intensive applications like high-performance computing and virtualization.

Resources

Specifications

Model KR2280-X2
Form Factor 2U rack server
Processor 2x 4th generation Intel® Xeon® Scalable processors, up to 60 cores, max TDP 350W, 4 UPI
Memory Up to 32x DDR 5 DIMMs, 8 channel design, supporting RDIMM
Supports up to 8x CXL 1.1
Storage Front:
3.5” LFF: up to 12x 3.5” SAS/SATA/NVMe or
2.5” SFF: up to 24x 2.5” SAS/SATA/NVMe / 25x 2.5” SAS/SATA (including 4x NVMe), or
24x E3.S NVMe
Internal:
Up to 4x 3.5” SAS/SATA/NVMe / 4x 2.5” SAS/SATA/NVMe / 2x SATA M.2 or 2x PCIe M.2
Rear:
Up to 4x 3.5” SAS/SATA + 4x 2.5” SAS/SATA/NVMe
Up to 10x 2.5” SAS/SATA/NVMe
Up to 4x 3.5” SAS/SATA + 2x SATA M.2 or 2x E1.S (Opt.)
Network Supports 2-3x OCP 3.0 PCIe 5.0 for NIC expansion
Expansion Slots Standard
KR2280-X2-A0-R0-00
Front I/O
KR2280-X2-A0-F0-00
Front:
Up to 13x standard PCIe 5.0 x8 and 2x OCP 3.0 x8 + 1x RAID mezzanine (additional)
Internal:
1x Mezz raid card
Rear:
8x PCIe (6x FHFL + 2x FHHL) or 10x (4x FH 3/4L + 2x FHHL + 4x HL 3/4L) or 13x HHHL PCIe 5.0 slot
GPU configuration: 4x double-wide GPUs
Front:
Up to support 16x standard PCIe 5.0 x8 and 3x OCP 3.0 x8 + 1x RAID mezzanine (additional)
Up to 8x PCIe 4.0 x16
Internal:
1x RAID mezzanine card
Rear:
6x FHHL PCIe Slots
Liquid Cooling
KR2280-X2-C0-R0-00
Supports up to 9 PCIe expansion slots, including 2 hot-swappable OCP 3.0
PSU (1+1) 800W/1300W/1600W/2000W/2700W
Fan 6x 6056 dual-rotor fan, N+1 rotor redundancy or
6x 6038 single-rotor fan
Management TPM/TCM 1.2/2.0, Intel PFR
Dimensions 435mm (W) x 87mm (H) x 800mm (D)

* Configuration subject to change and is not final
