KR2280-X3
Versatile Flagship 2U 2-Socket Server
- 2x Intel® Xeon® 6 processors
- Versatile front storage configurations for 2.5”, 3.5”, E3.S and E3.S 2T drives
- Front I/O configurations available
- Rear supports up to 15 standard PCIe slots
KR2280V3 is an all-purpose server with 2 Intel® Xeon® 6 Processors, delivering exceptional compute performance, storage performance and scalability. Its versatile configurations enable a broad range of workloads from general-purpose to heterogeneous computing, storage-intensive to I/O-intensive, and offer innovative front access as well as traditional rear access options. To optimize data center PUE, it fully supports cold-plated liquid cooling design with leak detection alert mechanisms to enhance system reliability.
Specifications
| Model | KR2280-X3 | |
|---|---|---|
| Configuration | Standard KR2280-X3-A0-R0-00 |
Front I/O KR2280-X3-A0-F0-00 |
| Form Factor | 2U rack server | |
| Processor | 1 or 2x Intel ® Xeon® 6 processors, (6500P/6700P-Series 2S/6700E-series), up to 350W TDP, 4x UPI 2.0 | |
| Memory | 32x DIMM slots that support up to DDR5 DIMMs (4800/5600 MT/s) 8x CXL 2.0 E3.S SSD (SRF CPU configuration) / 12x CXL 2.0 E3.S SSD (GNR CPU configuration), RDIMMs / MCR DIMMs supported |
|

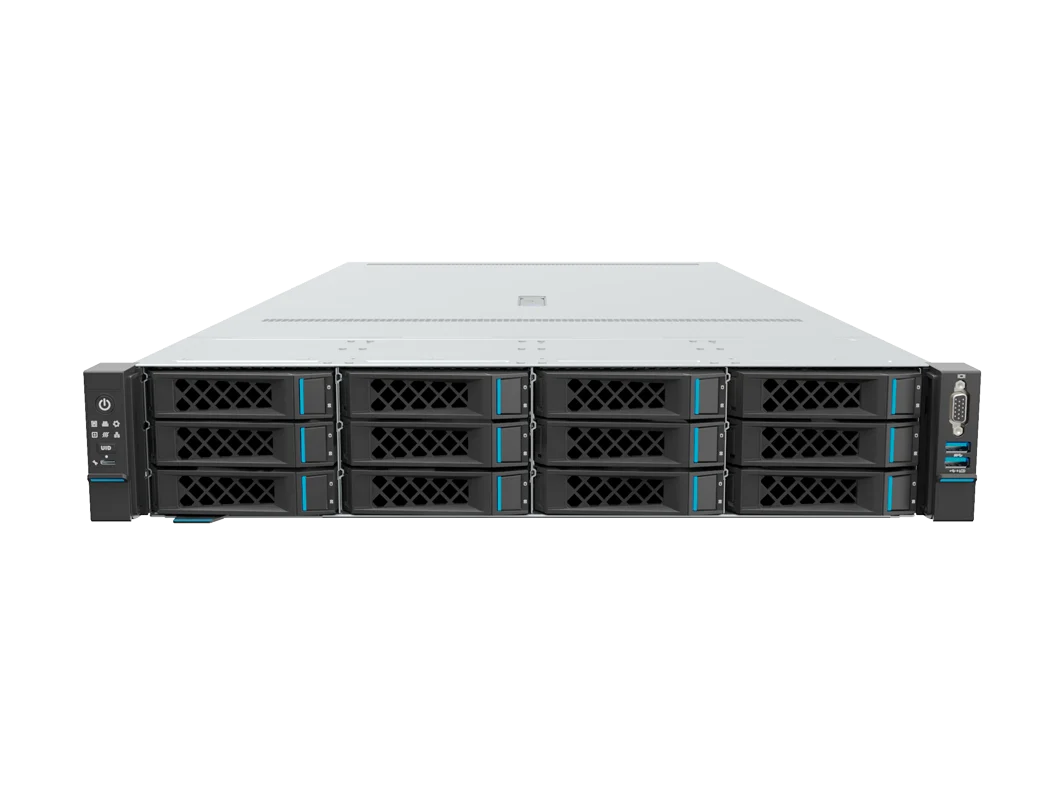

| Storage | Front: Option 1: 3.5” LFF – up to 12x 3.5” SAS/SATA/NVMe Option 2: 2.5” SFF – up to 24x 2.5” SAS/SATA/NVMe / 25x 2.5” SAS/SATA (up to 4 NVMe) Option 3: 24x (1T or 2T) / 48x (1T) E3.S SSDs |
Front I/O SKU: Option 1: 9x 3.5” SAS/SATA/NVMe Option 2: 8x or 16x 2.5” SAS/SATA/NVMe |
| Internal: Up to 1x TF cards Up to 2x SATA M.2 or 2xNVMe M.2 SSDs Up to 6x 3.5” SAS/SATA or 10x 2.5” SAS/SATA or 8x E3.S SSDs |
Internal: Up to 1x TF cards Up to 2x SATA M.2 or 2xNVMe M.2 SSDs |
|
| Rear: 4x 3.5” (SAS/SATA) + 4x 2.5” (SAS/SATA/NVMe) 4x 3.5” (SAS/SATA) + 2x SATA M.2/NVMe M.2 SSDs (hot-swap) 4x 3.5” (SAS/SATA) + 8x E1.S SSDs 10x 2.5” (SAS/SATA/NVMe) |
Rear: N/A | |
| Expansion Slots | Standard Configuration: Up to 15x PCIe 5.0 expansion slots, including 2x hot-swap OCP 3.0 slots |
Up to 21x PCIe 5.0 expansion slots (Front: 6x PCIe expansion slots and 1x OCP 3.0 slot; Rear: 12x PCIe expansion slots and 2x OCP 3.0 slots) |
| Liquid Cooling Configuration: Up to 11x PCIe 5.0 expansion slots for liquid cooling configuration, and 2x hot-swap OCP 3.0 Slot |
||
| Network Options | 2x OCP 3.0 x8/x16 | |
| Storage Controller | RAID controller and SAS controller IOH controller supports 16x SATA ports Onboard Intel NVMe controller, with optional Intel NVMe RAID key |
|
| Cooling | Fans: (6) hot-swap Dual Rotor Fans (N+1 Redundant) | |
| PSU | (1+1) 800W/1300W/1600W/2000W/2700W/3200W redundant Titanium/Platinum CRPS | |
| Security | TPM 2.0, Intel PFR, BMC/BIOS chip-level redundancy, MUPR 3.0 early warning of memory faults | |
| Management | ASPEED AST2600 | |
| Dimensions | 435mm (W) x 87mm (H) x 780mm/850mm (D) | |
* Configuration subject to change and is not final
