KR2460V2
Cloud-Optimized High-Performance 2U 4-Socket Server
- 4x 4th Gen Intel® Xeon® Scalable
- Memory supports up to 64 DDR5, RDIMM

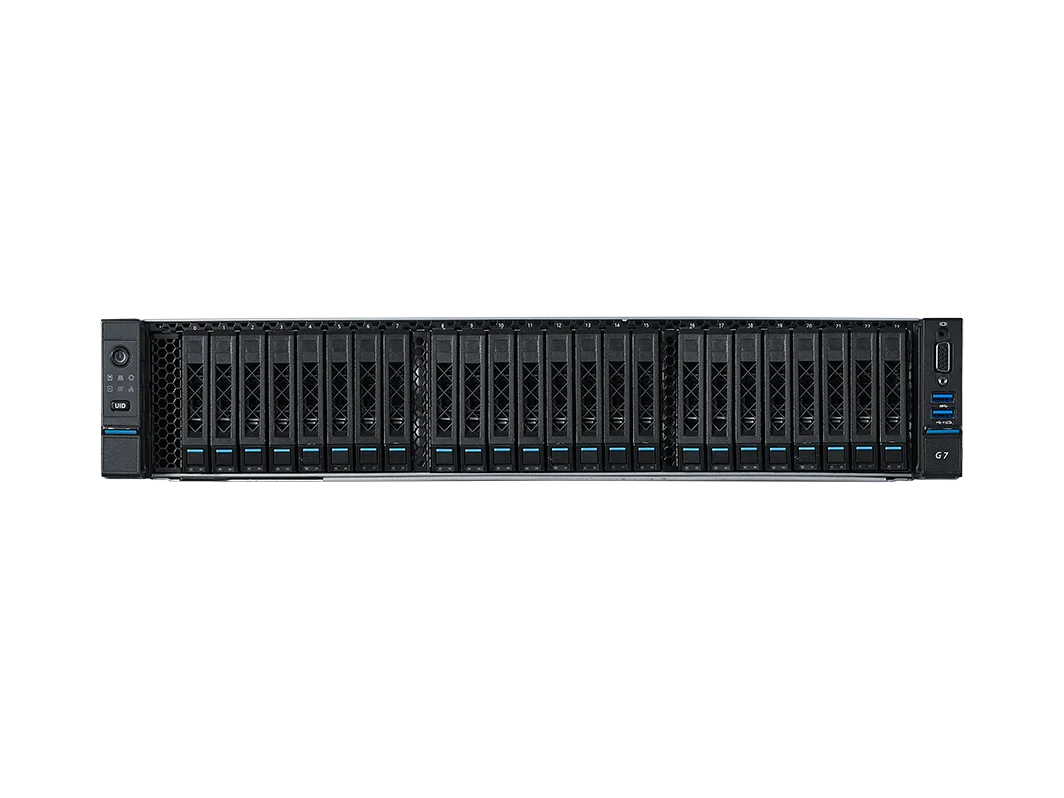

- Front storage supports up to 24x 2.5” SAS/SATA/NVMe, 25x 2.5″ SAS/SATA, 24x E3.S
- Internal storage supports up to 2x M.2
- Expansion supports up to 4x onboard PCIe x16 slots, 2x dual-width GPU or 4x single-width GPU
KR2460V2 is a 2U 4-socket cloud-optimized server that supports the latest 4th Generation Intel® Xeon® Scalable Processors. It supports front I/O and storage configurations up to 24 E.S, as well as multi-host OCP 3.0 for high-performance NUMA connection. This server is suited for applications like cloud computing, virtualization, HPC, in-memory database, and enterprise resource planning (ERP).
Resources
Specifications
| Model | KR2460-X2-A0-R0-00 |
|---|---|
| Processor | 4x 4th Gen Intel® Xeon® Scalable processors, 3UPI, Max TDP 350W |
| On-Board Devices | Intel C620® chipset, LBG-1G |
| Memory | 64x DDR5 DIMM，4800MHz @ 1DPC, 4400MHz @ 2DPC RDIMM/LRDIMM/3DS-RDIMM/3DS-LRDIMM |
| Storage | Front: 24x 2.5” SAS/SATA/NVMe or 25x 2.5” SAS/SATA or 24x E3.S Drive or Front I/O (model KR2460-X2-A0-F0-00) |
| Internal: 2x PCIe/SATA 2280/22110 M.2, supports HW/SW RAID 2x TF Card Supports NVMe RAID Key |
|
| Expansion Slots | 4x onboard PCIe x16 slots Left Riser: 2x PCIe x16 or 2x PCIe x8 Right Riser: 2x PCIe x16 + 1x PCIe x8 or 3x PCIe x8 Supports 2x dual-width GPU or 4x single-width GPU |
| OCP | x16 OCP 3.0, supports NCSI, supports Hot Plug Multi-Host OCP 3.0, does not support NCSI, does not support Hot Plug |
| Management | Supports IPMI 2.0, Redfish, mobile device management |
| Security | TPM 2.0, TCM 2.0, SGX, PFR |
| Power Supply | 2* Platinum/Titanium CRPS Supports redundant power supply (some configurations) |
| Form Factor | 2U rackmount |
| Dimensions | 435mm (W) x 87mm (H) x 841mm (D) |
