Flexible Deployment of NVIDIA Rubin Platform

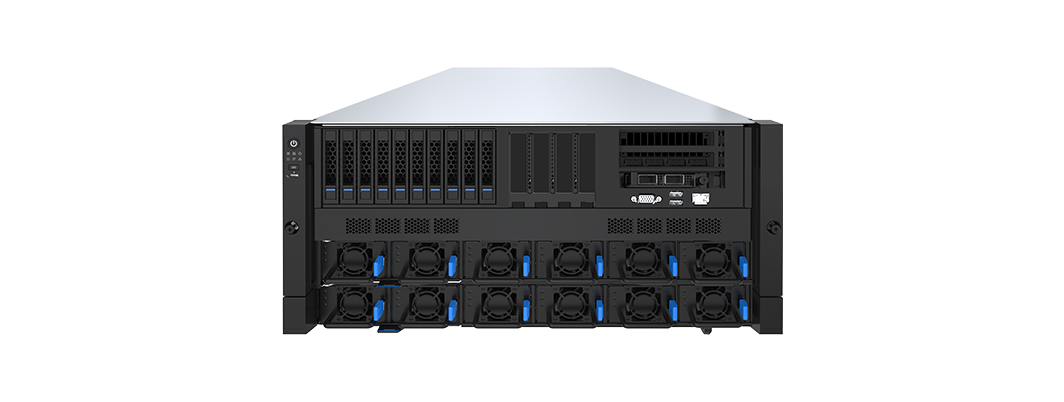

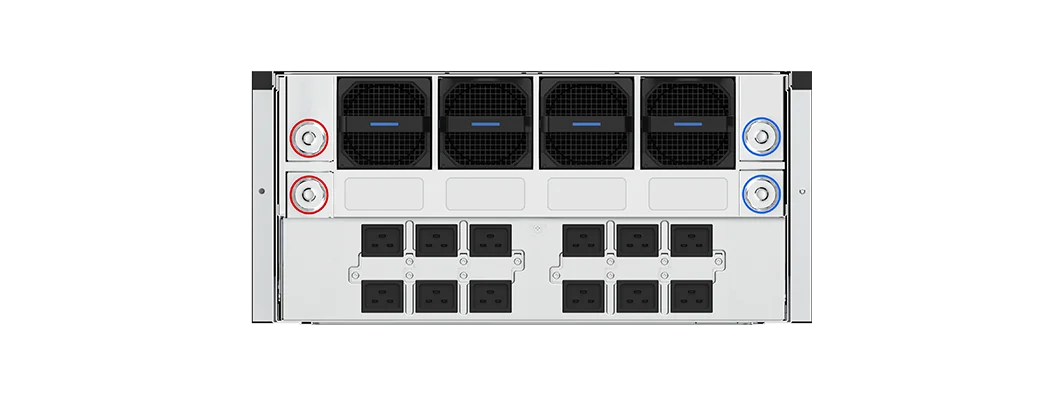

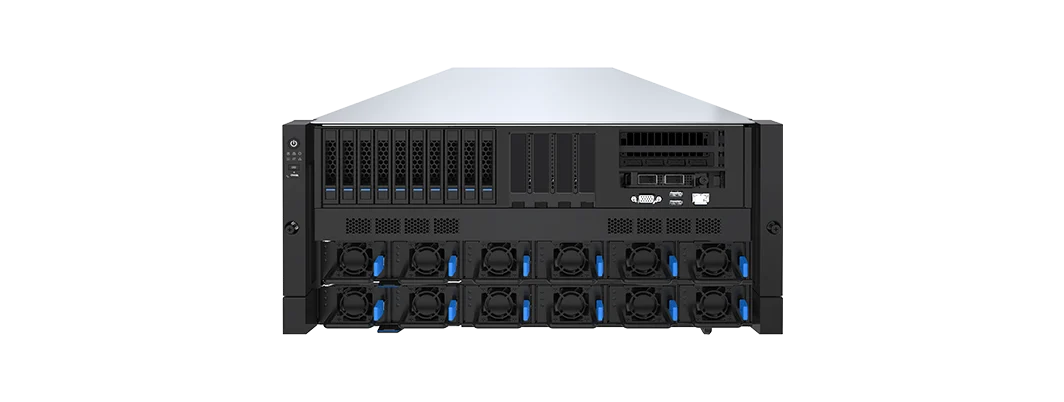

KR5288 Rubin features the top-of-line performance of NVIDIA HGX Rubin NVL8 in 5U while offering deployment flexibility and cost savings. Adopting a hybrid air-liquid cooling solution, it is ideal for existing data centers, requiring no changes to power, cooling or rack architecture and enabling rapid adoption of the latest NVIDIA Rubin technology.
Specifications
| Model | KR5288 Rubin |
|---|---|
| Form Factor | 5U rackmount |
| Processor | 2x Intel ® Xeon® 6 processors |
| Memory | 32x DDR5 RDIMM DDR5-8000 (1DPC) or MRDIMM-12800 (1DPC) |
| GPU | NVIDIA HGX Rubin 8-GPU |
| Storage | Up to 10x 2.5″ SAS/SATA/U.2/E3.S SSD |
| PCIe | 6x slots (4* LP AIC + 1* Dual-slot FHHL + 1* Single-slot FHHL) |
| Network Interface | 8x OSFP (IB XDR, ETH 800G) from CX-9 |
| Power | 12x 54V 5500W CPRS |
| Cooling | Air and liquid |
| Fan | 4x 8086 |
| Management | DC-SCM BMC Module |
| Security | TPM 2.0 |
| Power Consumption | 24KW |
| Dimensions | 447mm (W) x 220mm (H) x 850mm (D) |
