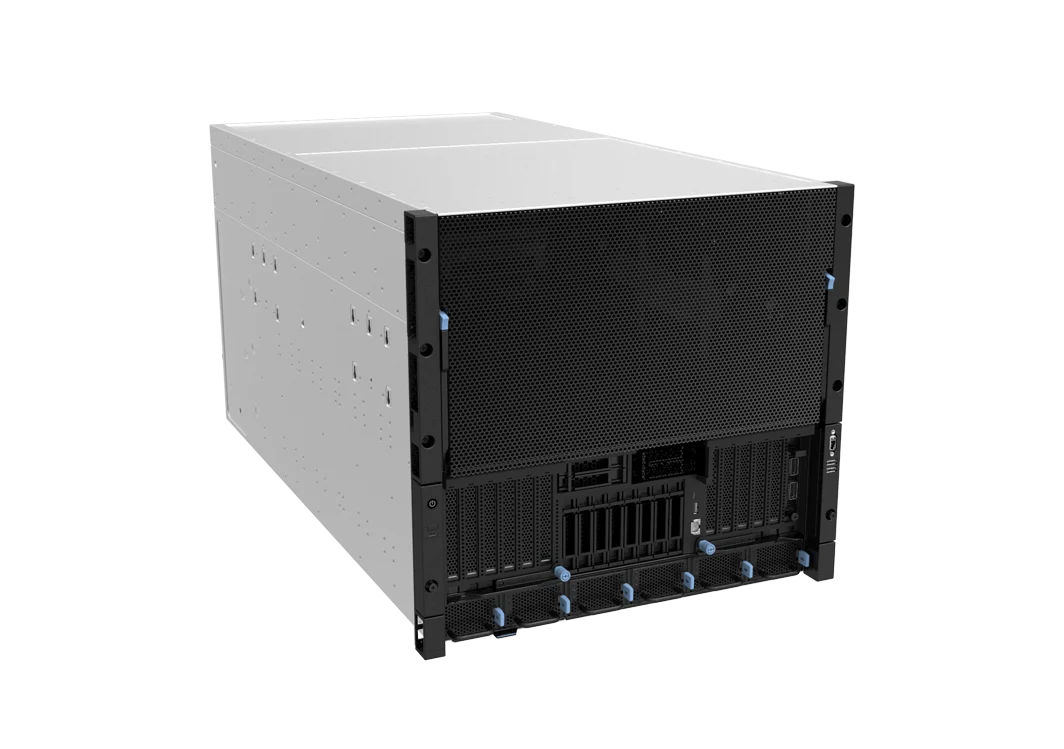

KR9288-X3 (NVIDIA HGX™ B200)
10U NVIDIA Blackwell AI Training Server
- Supports NVIDIA Blackwell 8-GPU (HGX™ B200 platform)
- 2x Intel® Xeon® 6 processors (6700/6900P Series)
- Supports 32x DIMM slots
- Supports up to 12x full-height expansion cards
- Modular design for easy deployment and maintenance
KR9288-X3 based on the NVIDIA Blackwell architecture features an NVIDIA HGX™ B200 8-GPU NVLink module and dual Intel ® Xeon® 6 processors. It is a 10U high-performance AI computing platform designed for large language model (LLM) training and multimodal inference workloads.
KR9288 enables extreme compute density and bandwidth for modern AI model development while maintaining stability with an advanced power and cooling design.
Resources
Specifications
| Model | KR9288-X3-A0-F0-00 with NVIDIA Blackwell |
|---|---|
| Form Factor | 10U rack server |
| Processor | 2x Intel ® Xeon® 6700/6900P Series processors, TDP up to 350W |
| GPU | NVIDIA Blackwell 8-GPU, TDP up to 1000W with HGX B200 (180GB) |
| Memory | 32x DDR5 6400MT/s DIMMs |
| Storage | 10x SATA SSD or NVMe U.2/U.3 or NVMe E3.S 2x SATA/NVMe M.2 |
| PCIe | Up to 14x PCIe 5.0 x16 slots, support Bluefield-3 series NIC |
| Network Inferface | 1x OCP 3.0 (optional) |
| Ports | 3x USB 3.0, 1x VGA, 1x RJ45, 1x MicroUSB, 1x Type-C |
| Cooling Options | Air cooling |
| Fans | 20x 80x86mm hot-swap fans |
| Management & Security | ASPEED AST2600 TPM 2.0 (Trusted Platform Module) |
| Power Supply | 2x 12V 3200W CRPS and 6x 54V 3300W Dual AC Titanium |
| Dimensions | 447mm (W) x 440mm (H) x 860mm (D) |
