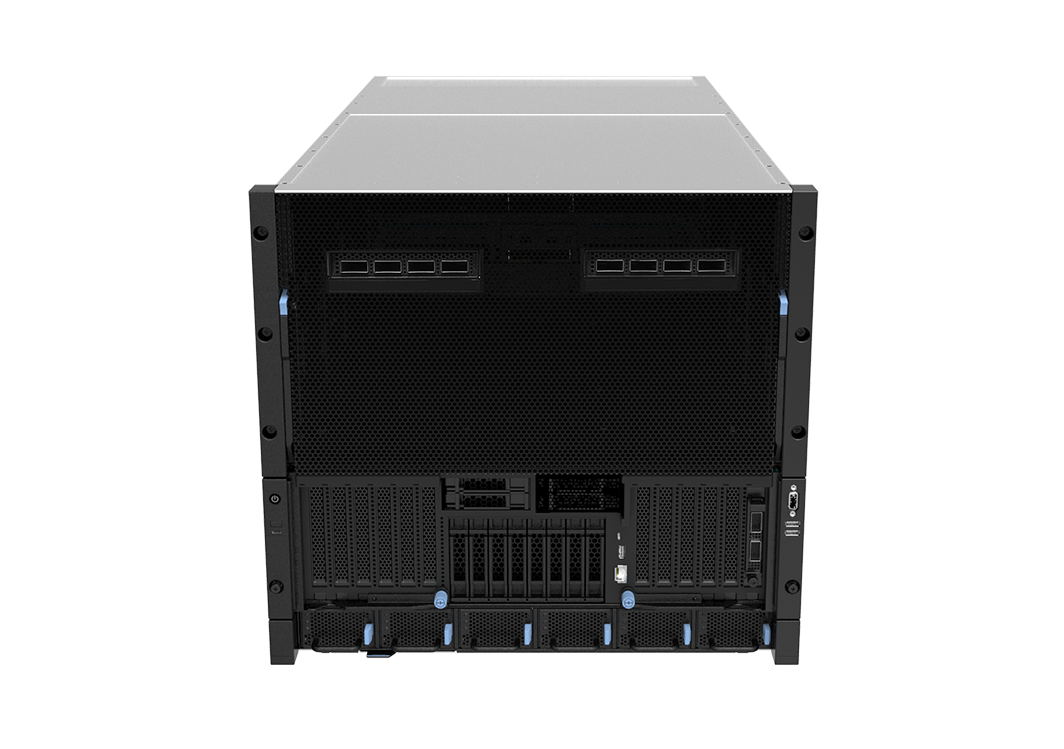

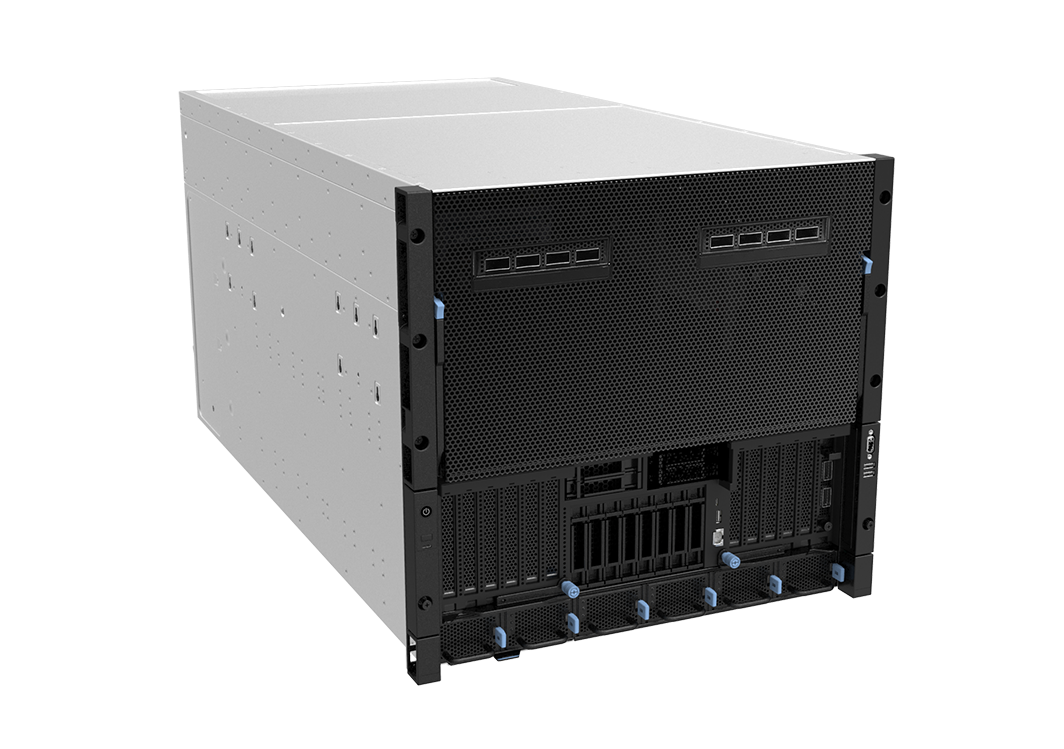

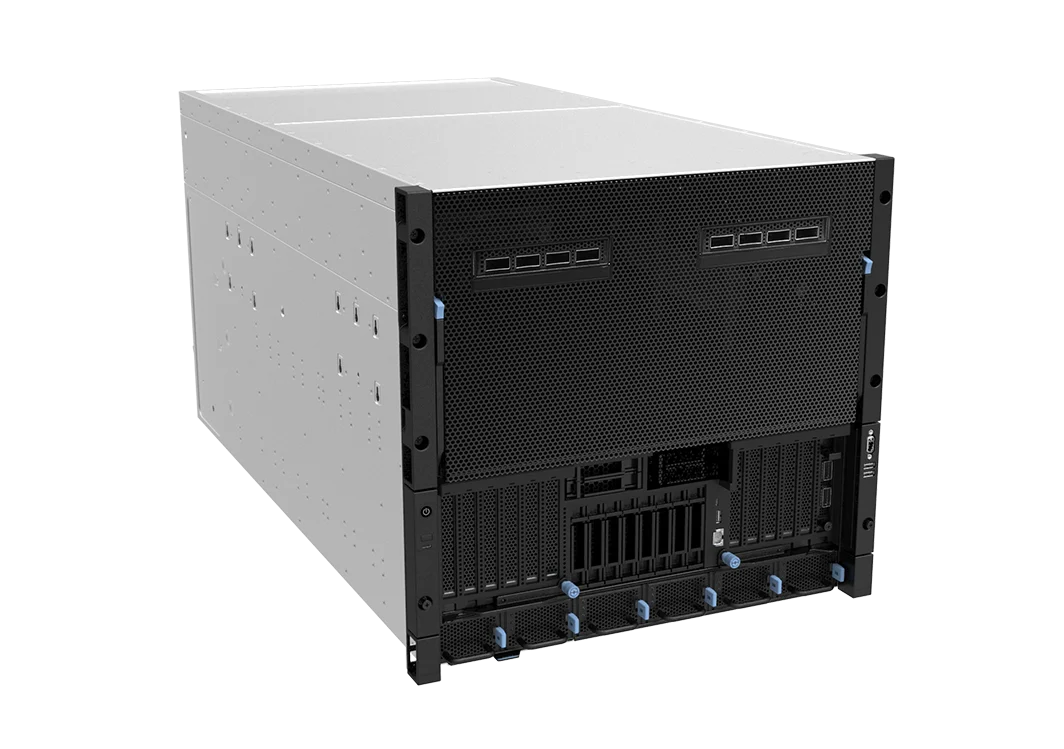

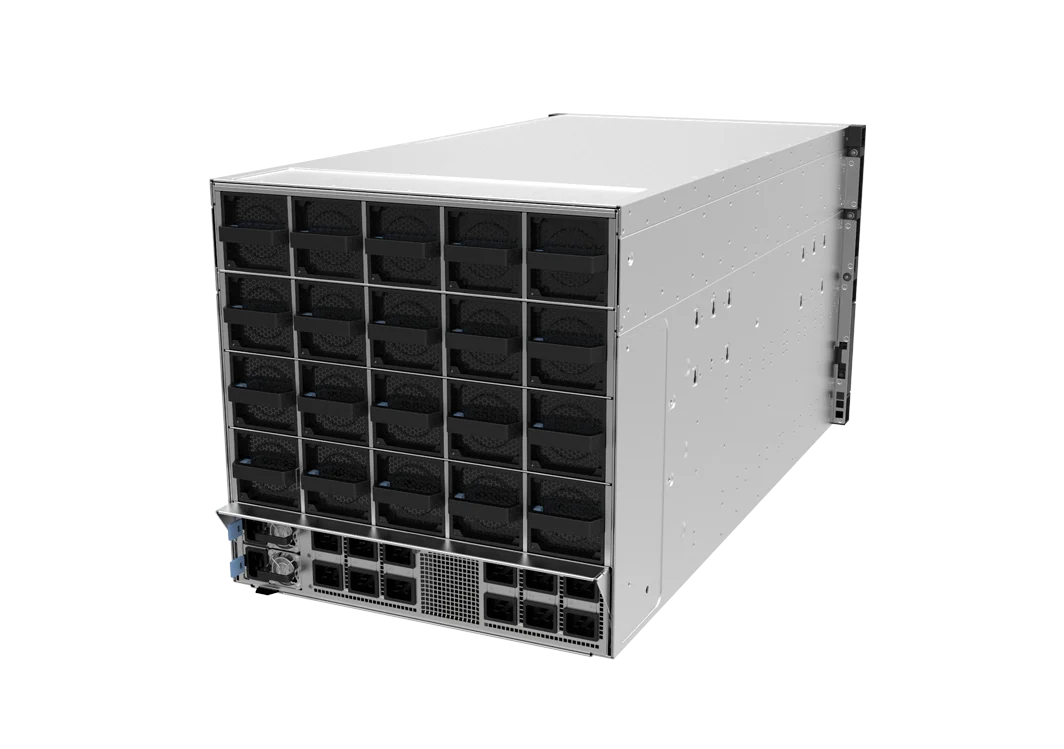

KR9288-X3 (NVIDIA HGX™ B300)
10U NVIDIA Blackwell Ultra AI Training Server
- Supports NVIDIA Blackwell Ultra 8-GPU (HGX™ B300 platform)
- 2x Intel® Xeon® 6 processors (6700/6900P Series)
- Supports 32/24x DIMM slots up to 8TB of memory
- Supports CX8 IB interconnect, 800Gb per SXM
- Supports 8x hot-swap U.2 NVMe drives, 2x M.2 NVMe
- Efficient air cooling design
KR9288-X3 is a 10U high-performance AI computing platform with dual Intel ® Xeon® 6 processors, designed for large language model (LLM) training and multimodal inference workloads. It features an 8-GPU NVLink module based on the latest NVIDIA Blackwell Ultra platform with NVIDIA HGX™ B300. It also includes support for OAM accelerators like Intel® Gaudi® 3.
KR9288 enables extreme compute density and bandwidth for modern AI model development while maintaining stability with an advanced power and cooling design.
Resources
Specifications
| Model | KR9288-X3-A0-F0-00 with NVIDIA Blackwell Ultra |
|---|---|
| Form Factor | 10U rack server |
| Processor | 2x Intel ® Xeon® 6700/6900P Series processors, TDP up to 350W |
| GPU | NVIDIA Blackwell Ultra 8-GPU, TDP up to 1200W with HGX B300 (288GB) |
| Memory | 32x DDR5-6400 RDIMMs, up to 8TB DDR5 ECC or 24x DDR5-6400 RDIMMs, up to 6TB DDR5 ECC |
| Storage | 8x NVMe U.2 + 2x SATA/NVMe M.2 4x SAS/SATA 2.5” drives with RAID (optional) |
| PCIe | 8x CX8 ports + 2x PCIe 5.0 x16 FHFL |
| Network Inferface | 1x OCP 3.0 (optional) |
| Ports | 3x USB 3.0, 1x VGA, 1x RJ45, 1x MicroUSB, 1x Type-C |
| Cooling Options | Air cooling |
| Fans | 20x 80x86mm hot-swap fans |
| Management & Security | ASPEED AST2600 BMC, Dual ROM (BMC + BIOS) Redundancy TPM 2.0 (Trusted Platform Module) |
| Power Supply | 6x 3300W 54V Dual AC, N+1 or N+N Redundant 2x 3200W 12V, N+1 Redundant |
| Dimensions | 447mm (W) x 440mm (H) x 890mm (D) |
