- Powered by NVIDIA Spectrum-2 ASIC
- Offers port speeds spanning from 1GbE to 400GbE
The NVIDIA® Spectrum™ SN3000 series switches, based on the second generation of Spectrum switch ASIC, are purpose-built for leaf, spine, and super-spine data center applications. Allowing maximum flexibility, the SN3000 series provides port speeds spanning from 1 to 200Gb/s with a port density that enables full-rack connectivity to any server at any speed. In addition, the uplink ports allow a variety of blocking ratios to suit any application requirement.

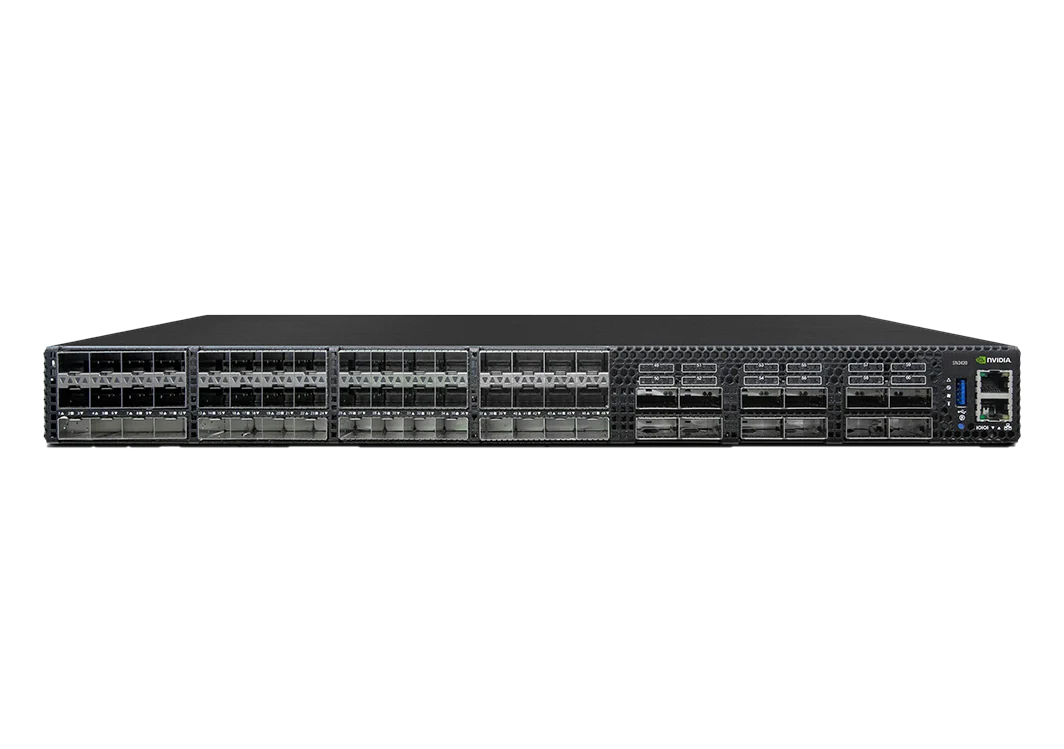

As data center switching architectures increasingly adopt 100GbE, the SN3420 switch offers a high-performance, cost-effective way to evolve host connectivity from 10G to 25G. Equipped with 48 ports of 10/25GbE and 12 ports of up to 100GbE and utilizing 25G NRZ per lane in a compact 1U form factor, the SN3420 is an ideal top-of rack (ToR) switch platform, delivering a total throughput of up to 2.4Tb/s with a processing capacity of 3.58Bpps. The SN3420 enables the seamless use of QSFP28 connections for leaf-spine topology and future-proofing the data center.
Resources
Specifications
| Switch Model | SN3420 |
|---|---|
| Connectors | 48 SFP28 25GbE + 12 QSFP28 100GbE |
| Max. 200GbE ports | – |
| Max. 100GbE ports | 12 |
| Max. 50GbE ports | 24 |
| Max. 40GbE ports | 12 |
| Max. 25 ports | 48 + 48 |
| Max. 10GbE ports | 48 + 48 |
| Max. 1GbE ports | 48 + 48 |
| Switching Capacity (Tb/s) | 2.4Tb/s |
| Wire-speed Switching (Bpps) | 3.58Bpps |
| Lanes per port x max speed per lane | 4 x 25G NRZ |
| Latency | 425ns |
| CPU | Dual-core x86 |
| System Memory | 8GB |
| SSD Memory | 32GB |
| Packet Buffer | 42MB |
| 100/1,000Mb Management Ports | 1 |
| Serial Ports | 1 RJ45 |
| USB Ports | 1 |
| Hot-swap Power Supplies | 2 (1+1 redundant) |
| Hot-swappable Fans | 5 (N+1 redundant) |
| Airflow Options | Forward or reverse |
| Power Supplies | Frequency: 50–60Hz Input range: 100–264VAC AC input current: 2.9–4.5A |
| Size | 1.72”(H) × 17.24”(W) × 18.29”(D) 44mm (H) × 438mm(W) × 464.6mm (D) |
| Weight | 8.5kg (18.73lb) |
| Safety | CB, CE, cTUVus, CU |
| EMC | CE, ICES, FCC, RCM, VCCI |
| Operating Conditions | Operating: 0–40ºC; Non-operating: -40–70ºC |
| Relative Humidity | 5–85% |
| Operating Altitude | 0-3050m |
| RoHS | RoHS compliant |
