K24X2-2S with 4th/5th Gen Intel® Xeon® Scalable
  • K24-2S 8x 2.5” 7mm SATA/NVMe
    K24-2S 8x 2.5” 7mm SATA/NVMe
  • K24-2S 4x 2.5” 15mm SATA/NVMe
    K24-2S 4x 2.5” 15mm SATA/NVMe
  • K24-2S no drives
    K24-2S no drives

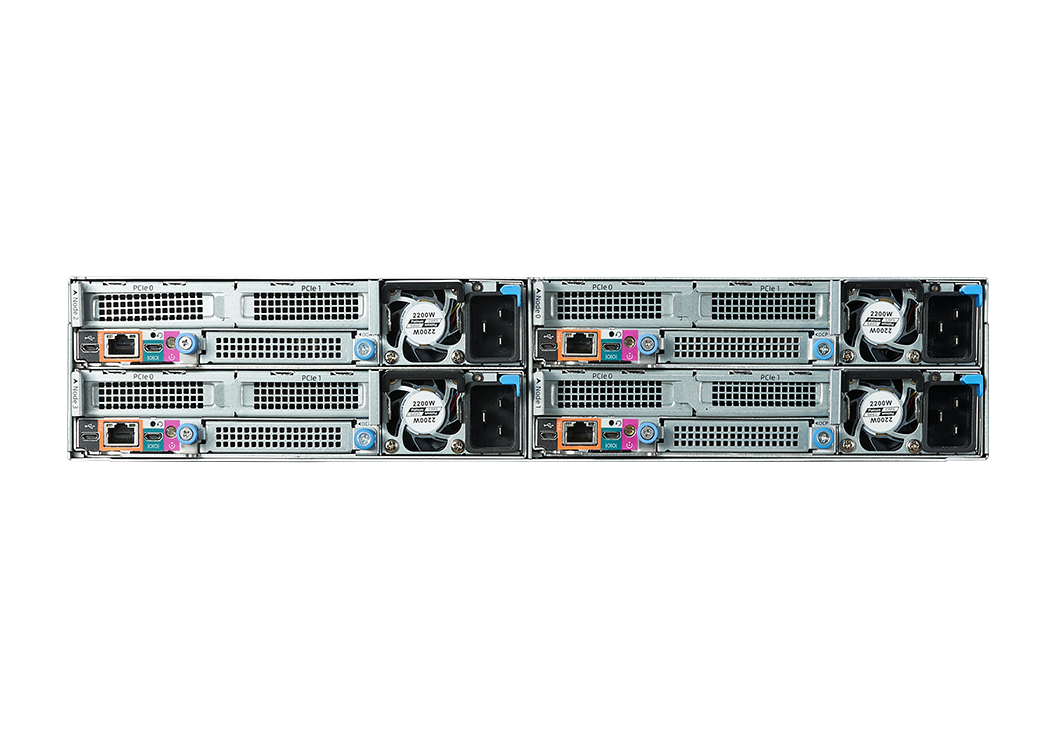

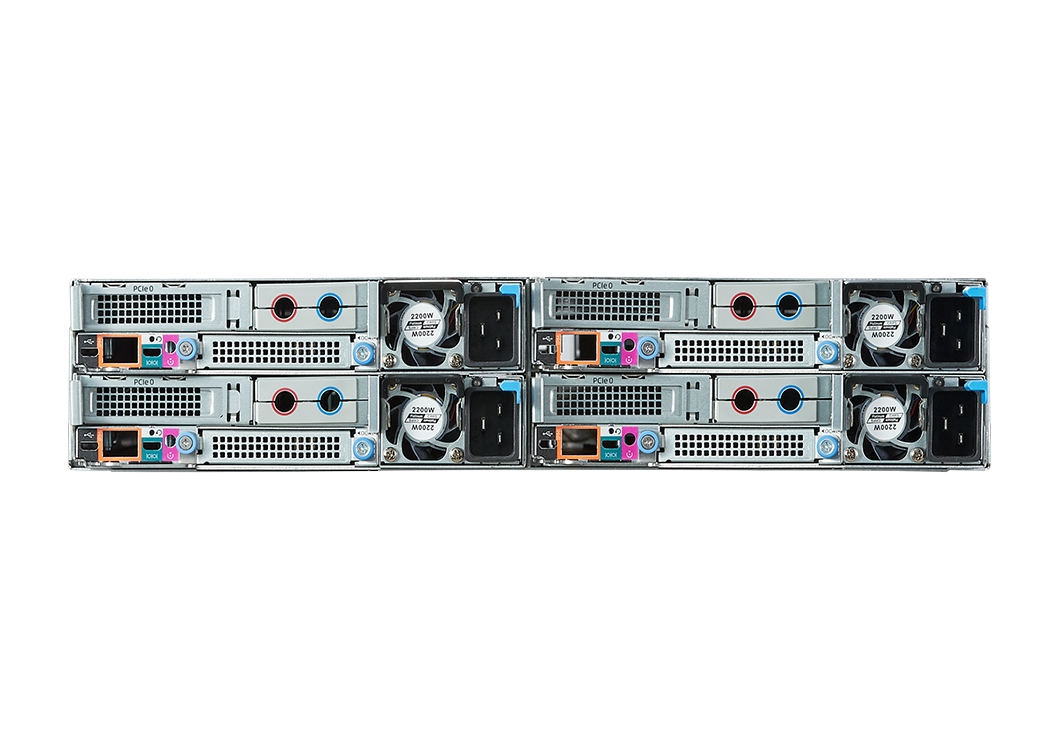

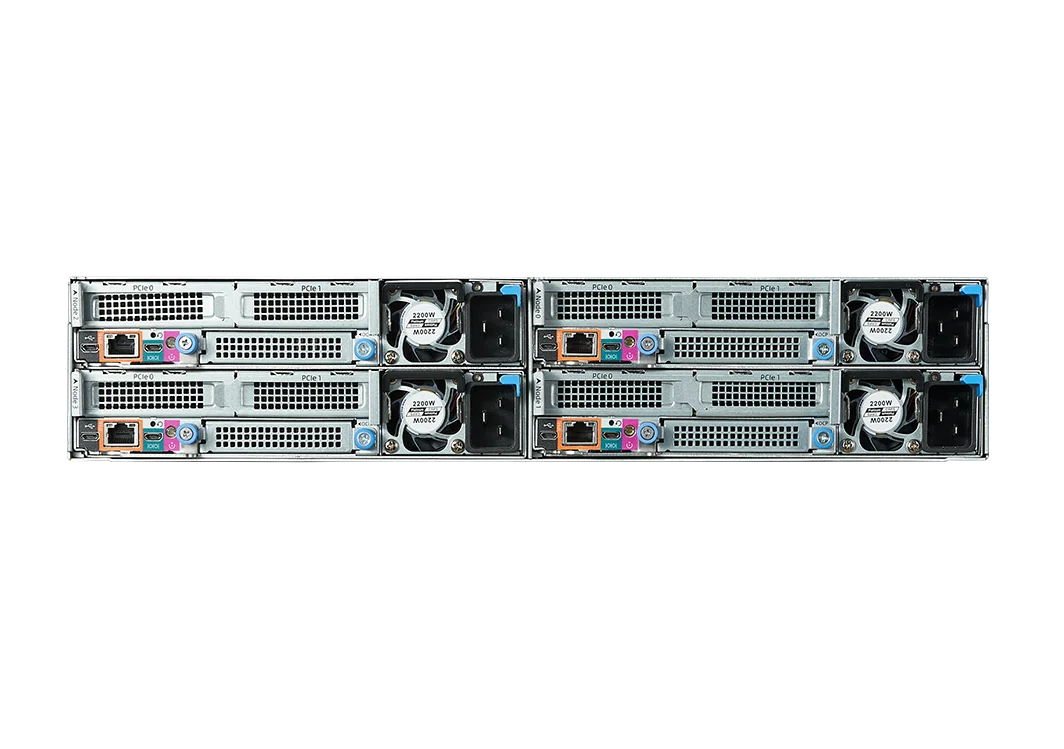

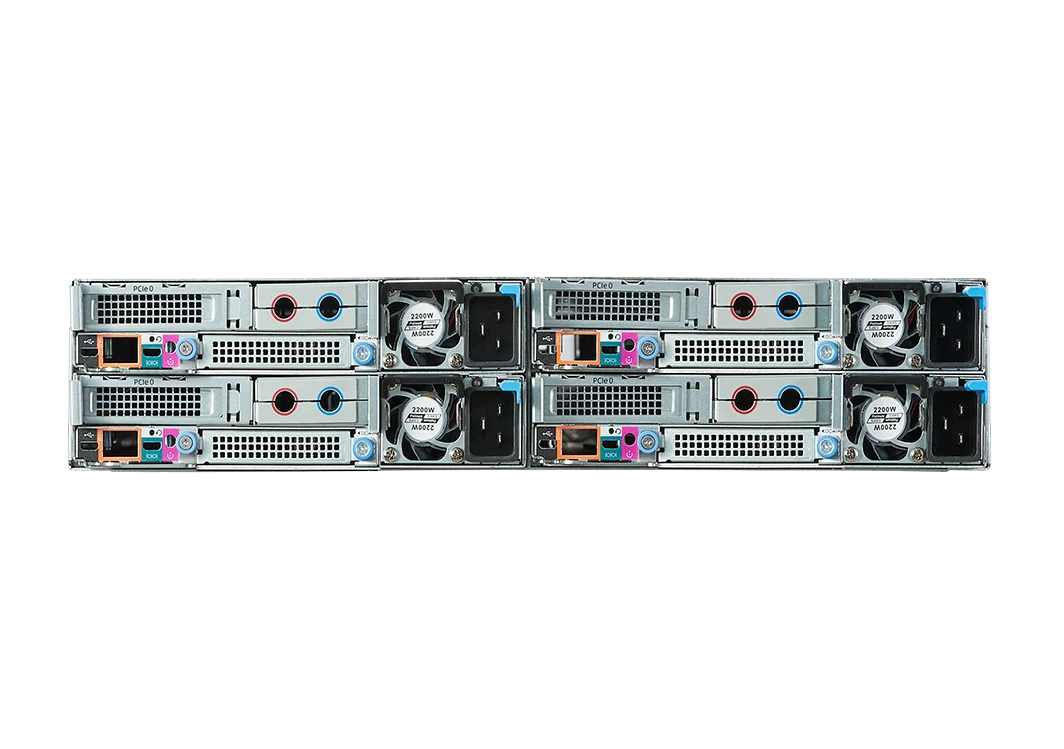

  • K24-2S rear
    K24-2S rear
K24X2-2S
2U 4-Node 2-Socket High-Density Server with Liquid Cooling Support

  • 2x 4th/5th Gen Intel® Xeon® Scalable processor per node

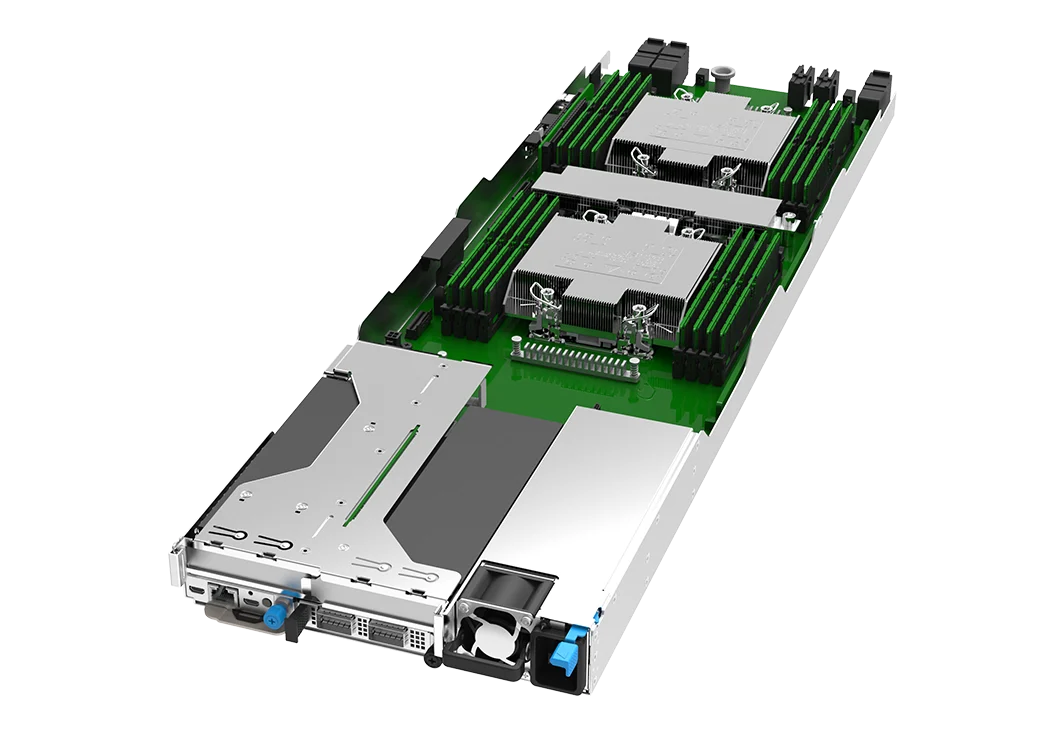

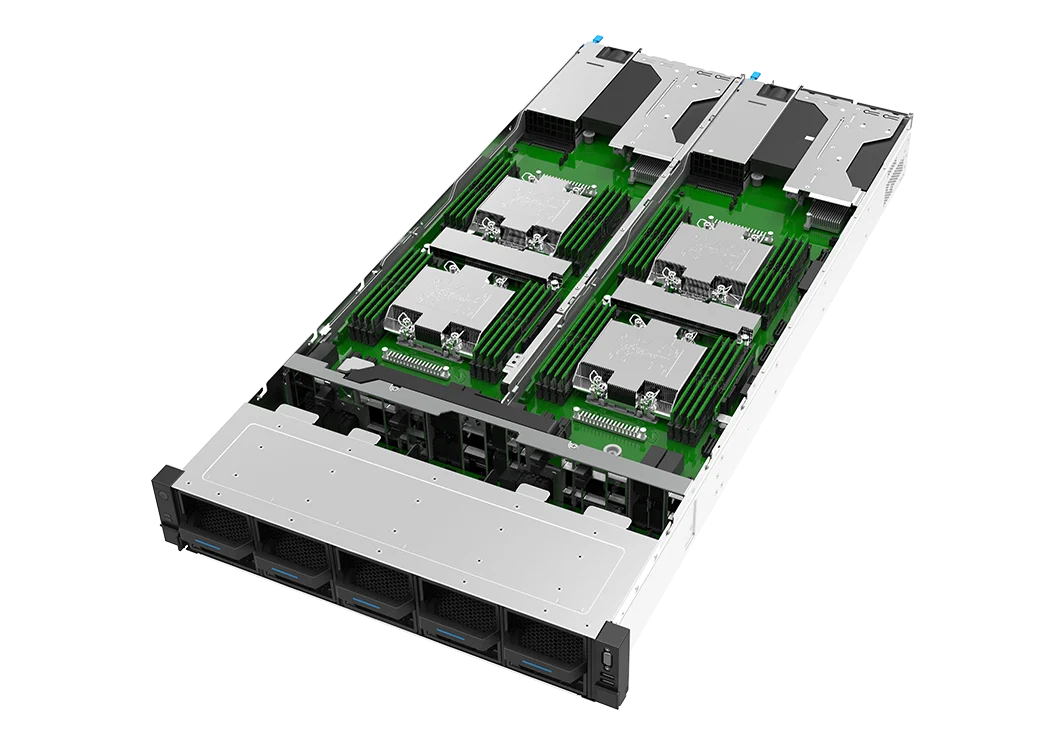

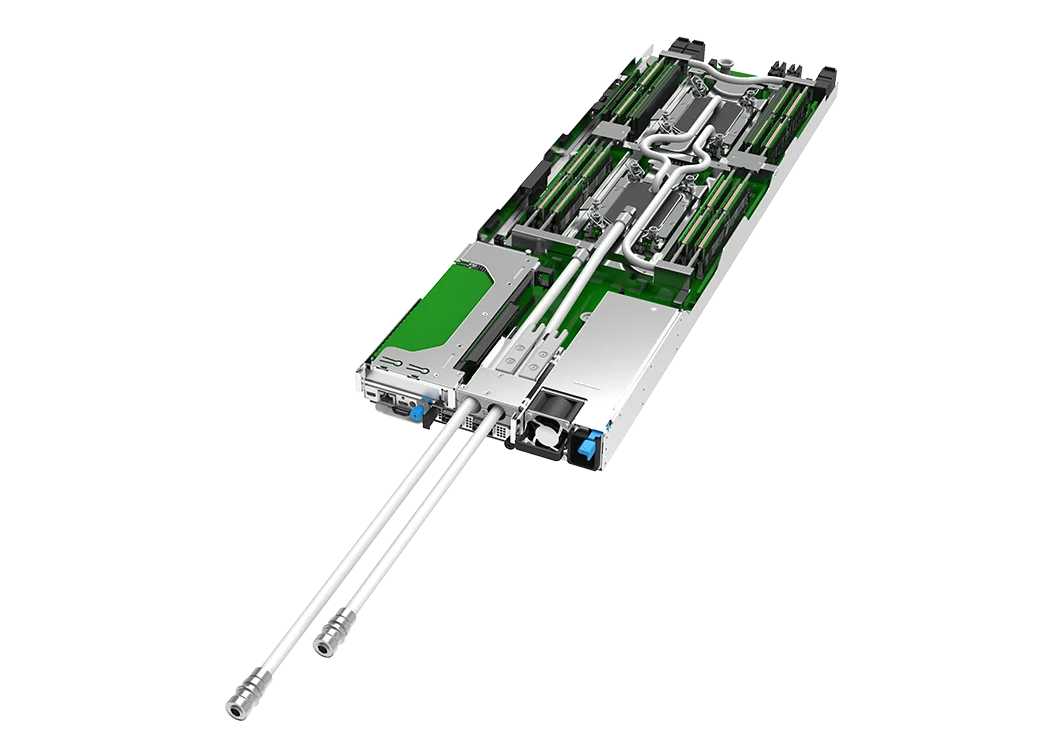

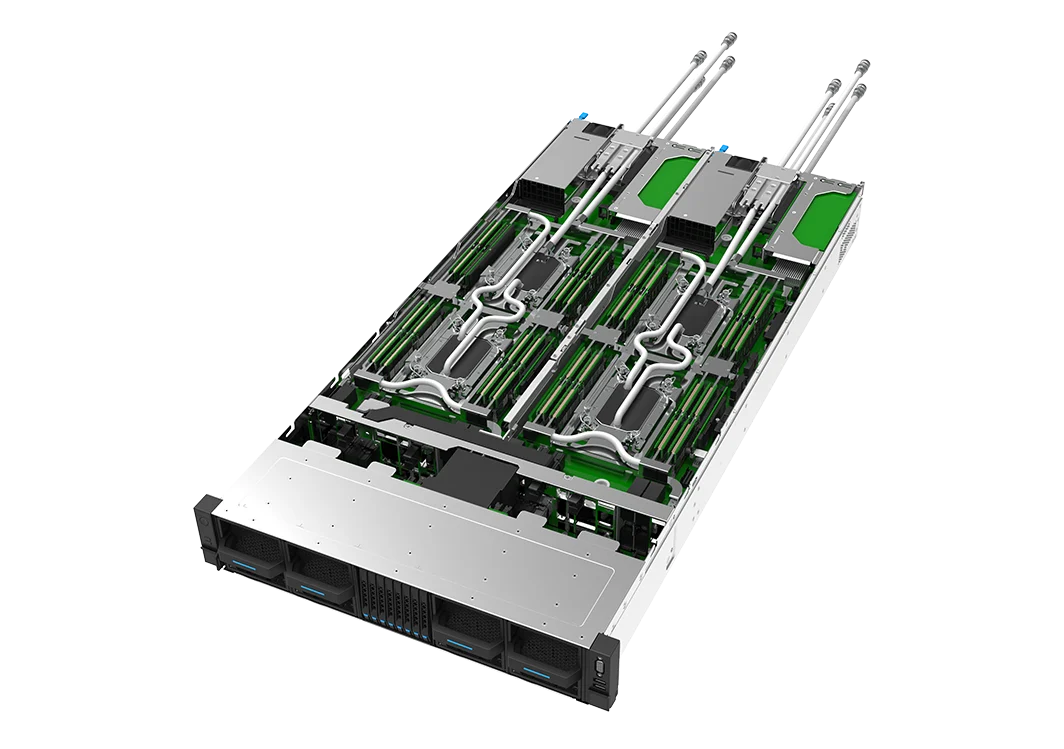

  • Supports air cooling and direct-to-chip CPU + DIMM cold-plate liquid cooling
  • 4x or 8x 2.5” SSD (15mm/7mm) storage configurations

K24X2-2S is a 2U 4-node 2-socket server delivering extreme compute density with 2 4th/5th Gen Intel® Xeon® Scalable processors per node. This highly efficient server saves on data center resources, energy consumption, and deployment costs, an ideal solution for reducing the TCO of data centers. It is optimized for maximum energy savings, utilizing Extended Volume Air Cooling (EVAC) Heat Sink & HDD backplane to lower fan power expenditure, Power Capping to achieve machine-level efficiency, and dynamic node power that reduces system downtime. In addition to air cooling, the system supports an energy efficient full cold-plate liquid cooling design to minimize power consumption costs, and supports integrated air-liquid whole cabinet delivery for agile, rapid deployment.

Specifications

K24-X2-A0-R0-00
Air Cooled
K24-X2-C0-R0-00
Liquid Cooled
Form Factor 2U 4-Nodes 2-Sockets
Node Node Model KM1270-X2-A0-R0-00 KM1270-X2-C0-R0-00
Processor 2x 4th/5th generation Intel® Xeon® Scalable processor, up to 350W TDP 2x 4th/5th generation Intel® Xeon® Scalable processor, up to 450W TDP
Memory 16x DDR5 DIMMs, 4800MHz @ 1DPC, supports RDIMM
Storage 2x SATA/NVMe M.2
Network Interface 1x OCP 3.0 PCIe 5.0 x8
PCIe 1x PCIe 5.0 x16 LP slot
+ 1x PCIe 4.0 x16 LP slot
1x PCIe 5.0 x16 LP slot
Ports 1x RJ45 for Mgmt, 1x UID, 1x RST, 1x micro USB for UART, 1x micro USB
Management ASPEED AST2600
Security 1x TPM 2.0
Chassis Storage Drives 1. 4x 2.5” 15mm SATA/NVMe
2. 8x 2.5” 7mm SATA/NVMe
3. no drives
Front I/O 1x VGA + 2x USB2.0 TypeA (Switch to select for 4 Nodes)
Cooling Air Liquid
Fan (4) 8086 Dual Rotor fans, N+1 rotor redundancy
Power Supply 4x 2000/2700W PSUs (Platinum/Titanium), supports N+N redundancy
Dimensions 447mm (W) x 87mm (H) x 921mm (D)

* Configuration subject to change and is not final
