KR1280V2 with 4th Gen Intel® Xeon® Scalable
  • KR1280-X2 4LFF + 4SFF
    KR1280-X2 4LFF + 4SFF
  • KR1280-X2 4SFF + 2E1.S + 2M.2
    KR1280-X2 4SFF + 2E1.S + 2M.2

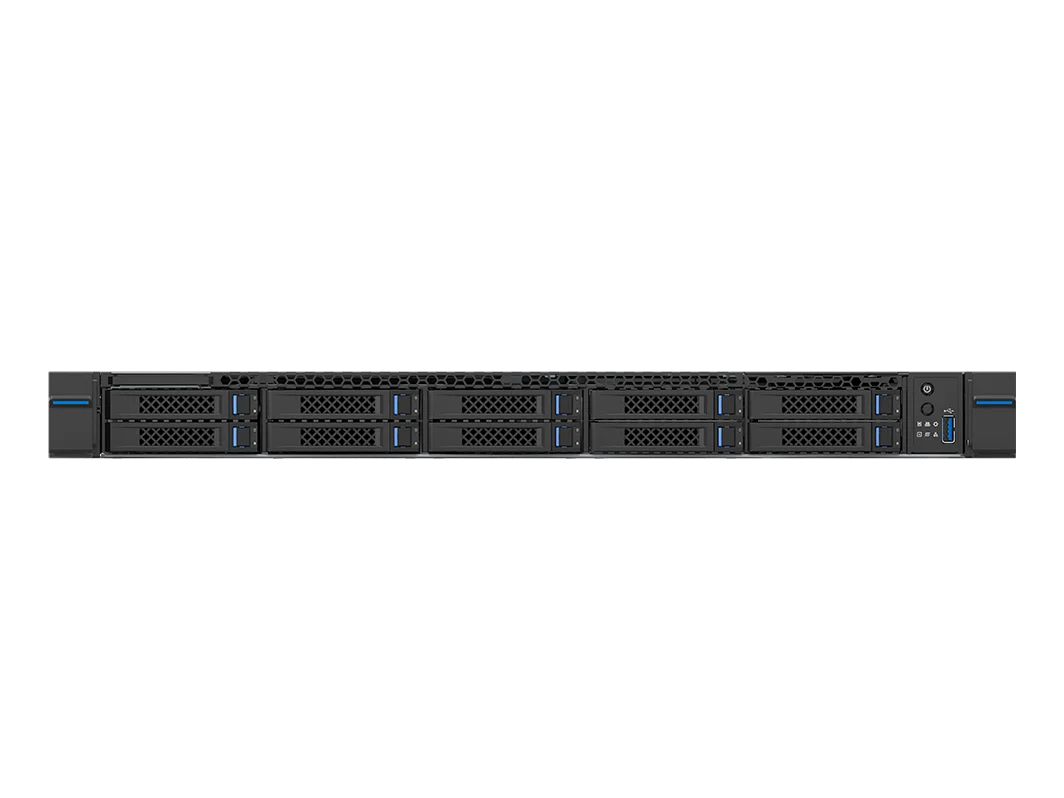

  • KR1280-X2 10SFF
    KR1280-X2 10SFF

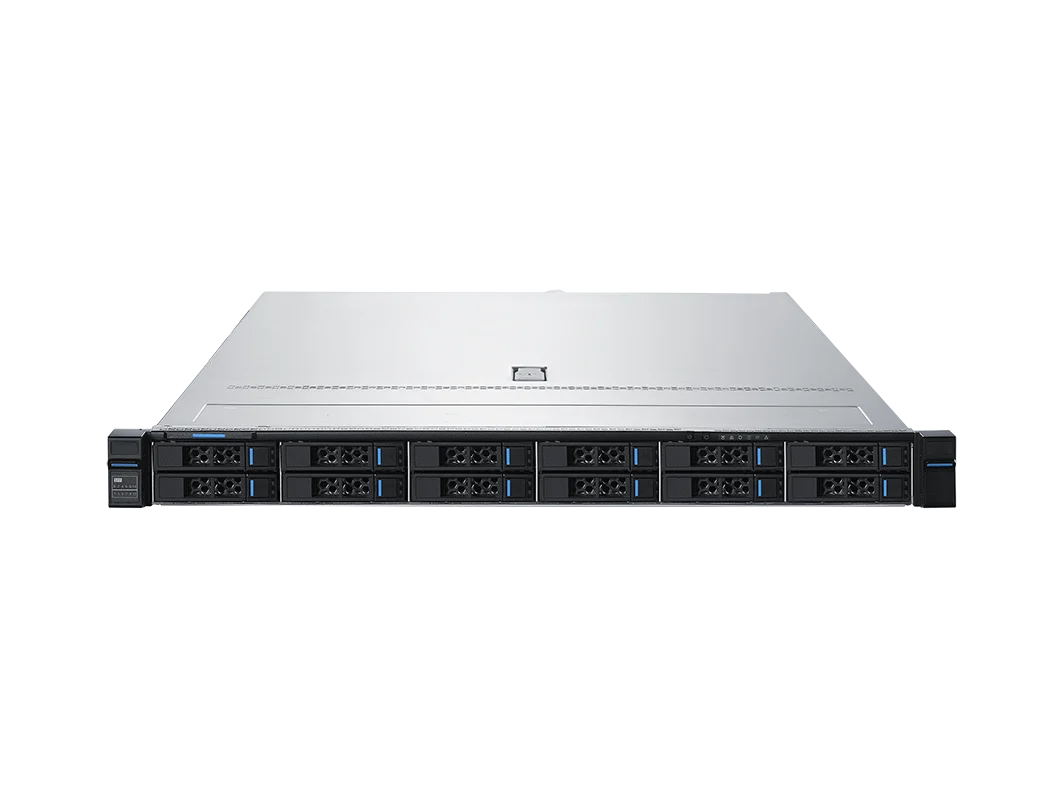

  • KR1280-X2 12SFF
    KR1280-X2 12SFF

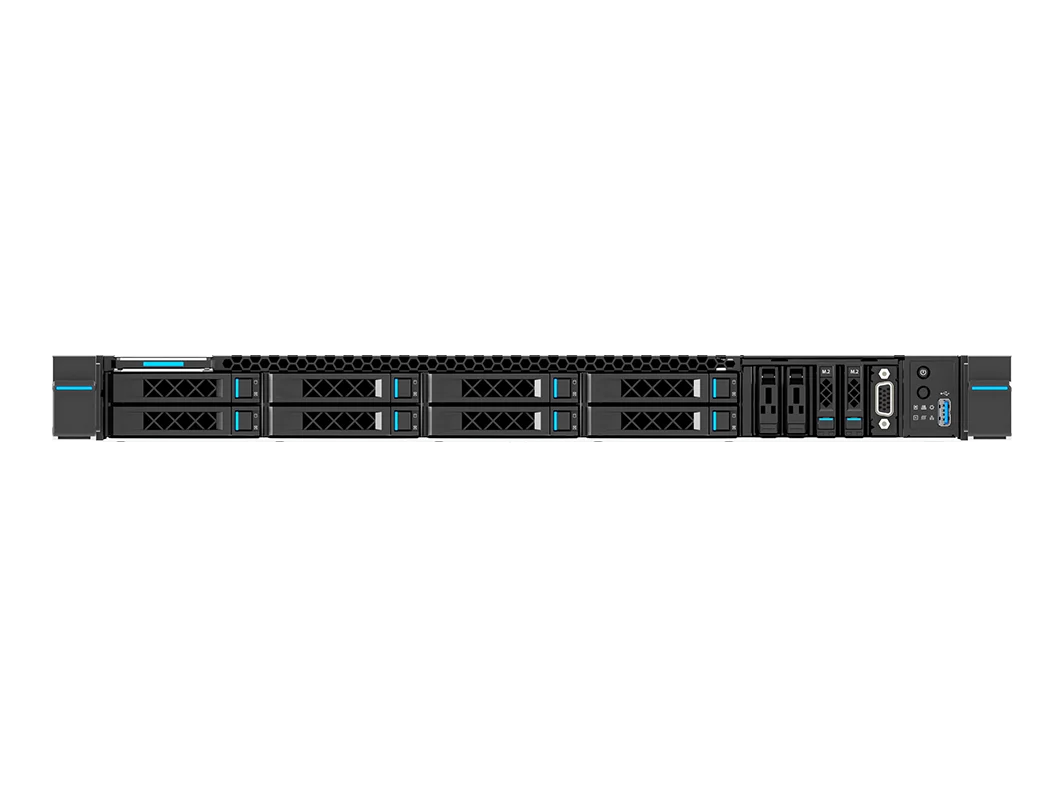

  • KR1280-X2 8SFF + 2E1.S + 2M
    KR1280-X2 8SFF + 2E1.S + 2M

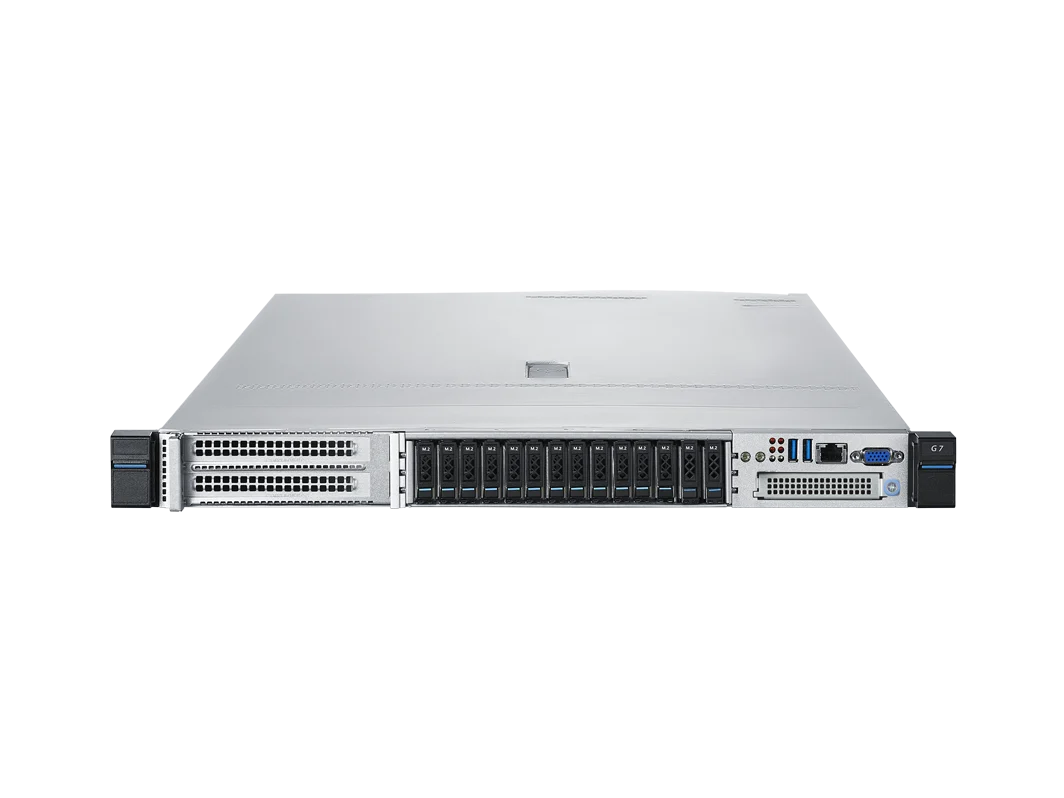

  • KR1280-X2 12E1.S Front I/O
    KR1280-X2 12E1.S Front I/O

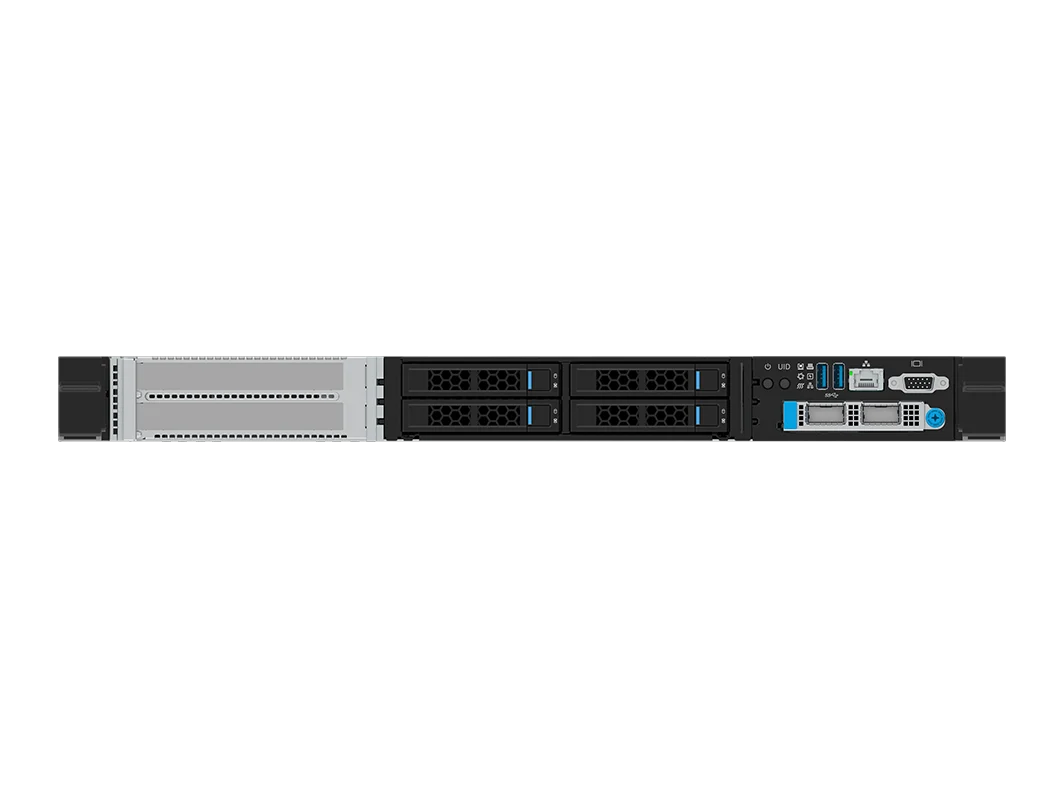

  • KR1280-X2 4E1.S Front I/O
    KR1280-X2 4E1.S Front I/O
  • KR1280-X2 rear 2PCIe
    KR1280-X2 rear 2PCIe

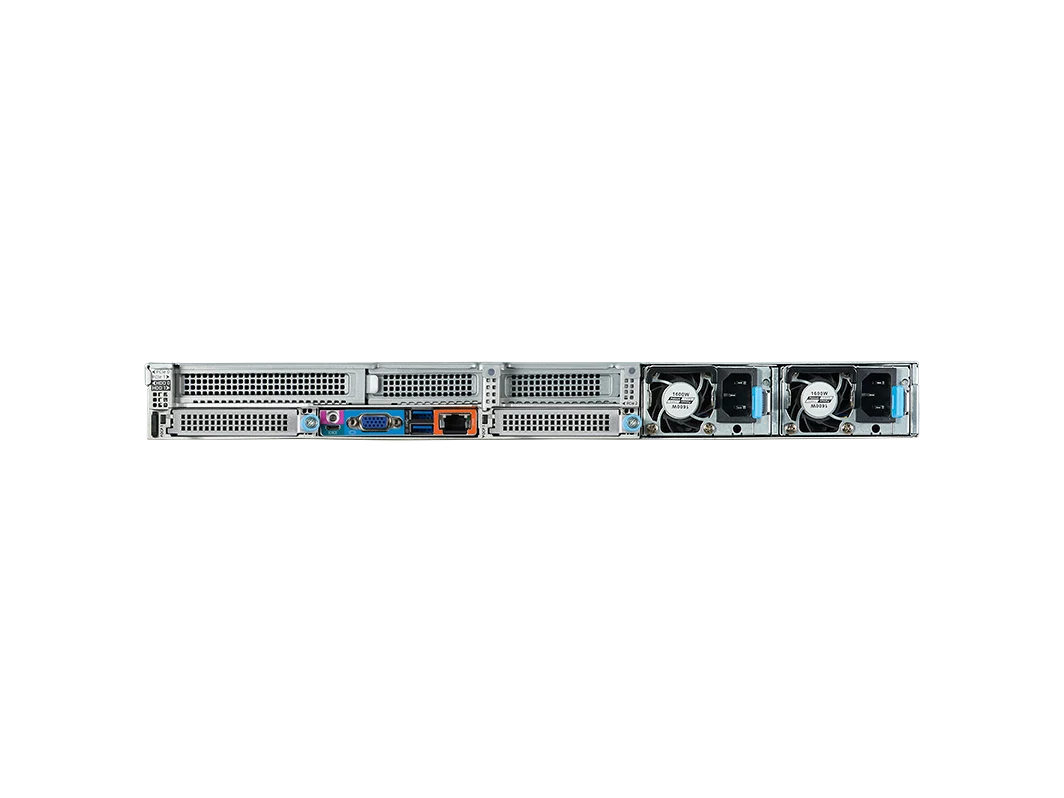

  • KR1280-X2 rear 3PCIe
    KR1280-X2 rear 3PCIe
KR1280-X2
Flagship High-Density 2-Socket Server with Multiple Configurations

  • 2x 4th Gen Intel® Xeon® Scalable
  • Supports up to 12x 2.5″ SAS/SATA/NVMe or 32x PCIe 5.0 E1.S configurations
  • Delivers high-density performance and scalability in 1U
  • Supports compute-intensive applications like high-performance computing, virtualization
  • Supports 3 cooling schemes: air cooling, cold plate liquid cooling, and immersion liquid cooling


KR1280V2 with 4th Generation Intel® Xeon® Scalable is a 1U 2-socket general purpose rackmount server delivering high-density performance and scalability to support compute-intensive applications like high-performance computing and virtualization.

Resources

Specifications

Model KR1280-X2
Configuration General
KR1280-X2-A0-R0-00		 Front I/O
KR1280-X2-A0-F0-00
Form Factor 1U rack server
Processor 2x 4th generation Intel® Xeon® Scalable processors, max TDP 350W, 4UPI
Up to 80x PCIe Gen5 Lanes
PCH: Intel® C741 Chipset
Memory 32x DDR5 DIMM (8ch), supports RDIMM
Storage Front SKU 1:
4x 3.5” SAS/SATA/NVMe + 4x 2.5” SAS/SATA/NVMe or
4x 3.5” SAS/SATA/NVMe + 2x E1.S + 2x SATA M.2
Front SKU 2:
10x 2.5” SAS/SATA/NVMe or
12x 2.5” SAS/SATA/NVMe or
8x 2.5” SAS/SATA/NVMe + 2x E1.S + 2x SATA M.2
Front SKU 3:
32x PCIe 5.0 E1.S (9.5mm/15mm)		 Front I/O SKU:
12x E1.S SSD + 2x SATA M.2 + 2x FHHL PCIe + 1x OCP 3.0 or
4x E3.S SSD / 4x 2.5” SAS/SATA/NVMe + 2x FHHL PCIe + 1x OCP 3.0
Internal:
2x SATA 3.0 / 2x PCIe x4 M.2, compatible with 2280, 22110
Rear:
(Opt.) 2x 2.5” SAS/SATA
Expansion Slots Internal:
(Opt.) 1 x8 RAID mezzanine or 2x PCIe x4 M.2
(Opt.) 2x hot-plug OCP 3.0 G5 Ethernet card (2 x8 or 1 x16 + 1 x8), supports NCSI		 Internal:
1 x8 RAID mezzanine
Rear:
2 x16 FHHL PCIe slot or 1 x16 FHHL PCIe slot + 2 x16 HHHL PCIe slot		 Front and Rear:
3x hot-plug OCP 3.0 G5 Ethernet card (front 1x + rear 2x)
4x PCIe standard card (front 2x + rear 2x)
Security 1x TPM SPI 2.0, PFR
Cooling Fans: 8x 4056 hot-pluggable dual-rotor fan, N+1 rotor redundancy (none for immersive cooling models)
Liquid cooling: cold-plate (KR1280-X2-C0-R0-00)
Liquid cooling: immersion (KR1280-X2-M0-U0-00)
PSU (1+1) 550W/800W/1300W/1600W/2000W, energy efficiency level to support 80 plus platinum, titanium gold
Management AST2600 via DC-SCM adapter
Dimensions 438mm (W) x 43.05mm (H) x 800mm / 850mm (D)

* Configuration subject to change and is not final
