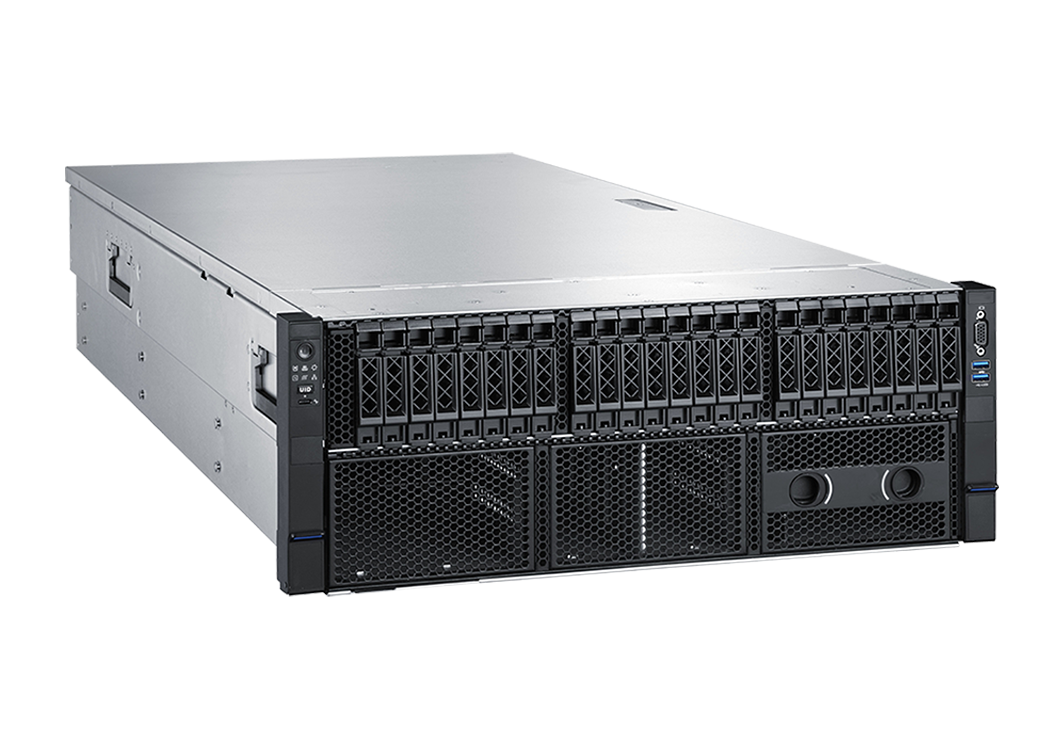

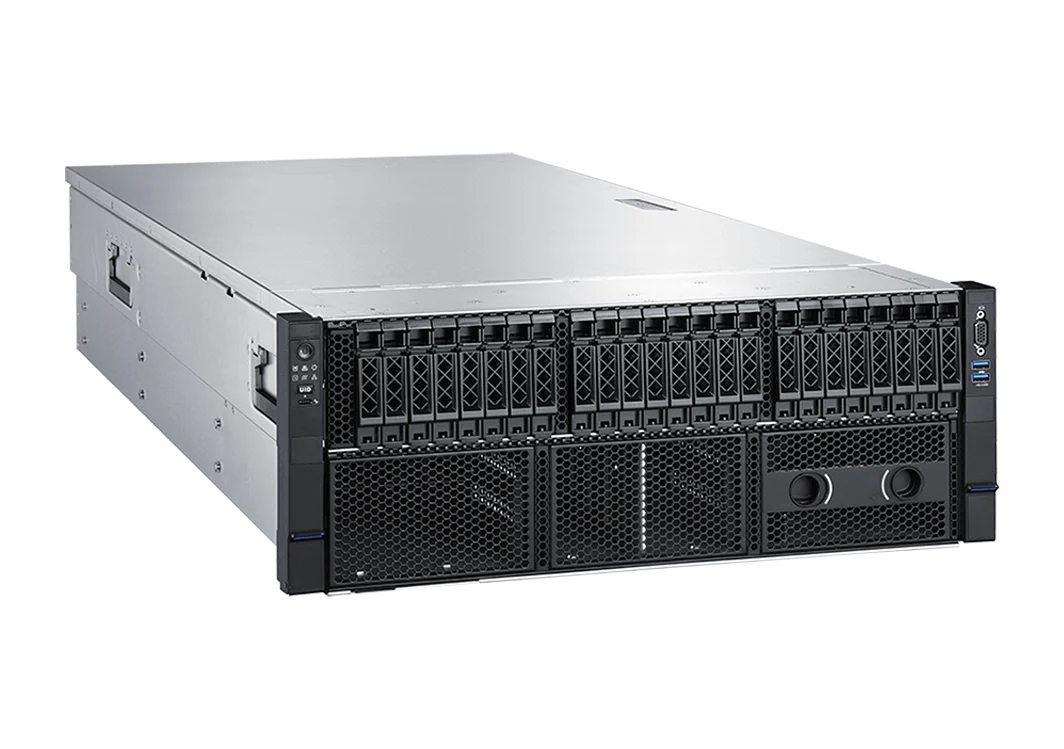

KR4268-E3
4U 8 PCIe GPU AI Server with Flexible Storage Configs
- Supports 8x PCIe GPUs (including NVIDIA L40S, NVIDIA H200 NVL GPU)
- 2x AMD EPYC™ 9005
- 16/24x 2.5” or 12x 3.5” drive storage configurations
- Up to 13x rear PCIe 5.0 x16 expansion slots
KR4268V3 powered by AMD processors boasts outstanding computing performance with multiple computing resources integrated, flexibly applicable to various workloads. Powered by two AMD EPYC™ 9005 processors built on the 5nm processor technology, the server supports up to 284 CPU cores and 8 GPUs via PCIe expansion slots. Its direct GPU-CPU connection design significantly reduces data latency and improves GPU utilization, making it an ideal solution for advanced AI applications including AI cloud, IVA, video processing, and more.
Advanced Performance
- Supports 5nm AMD EPYC™ 9005 processors, up to 284 cores
- Supports NVIDIA L40S, H200 NVL GPUs
- PCIe topology structure with up to 64GB/s bandwidth channel enables high-throughput data transmission
Enhanced Architecture
- Latest CXL1.1 interconnect technology supports storage-level memory space expansion
- Supports latest 400G NDR infiniband network and 400G OCP 3.0
Flexible Configuration
- Up to 13 PCIe slots for flexible expansion
- Modular design concept supports flexible component-level configuration
Resources
Specifications
| Model | KR4268-E3-A0-R0-00 |
|---|---|
| Form Factor | 4U rack server |
| Processor | 2x AMD EPYC™ 9005 processors, up to 500W |
| Memory | 24x DDR5 6000MT/s RDIMMs |
| GPU | 8x FHFL double-width PCIe 5.0 GPU cards Supports NVIDIA L40S, H200 NVL |
| Storage | 24x 2.5-inch SAS/SATA/NVMe (hot-swap) or 12x 3.5-inch SAS/SATA/NVMe (hot-swap) or 16x 2.5-inch SAS/SATA/NVMe (hot-swap) 2x NVMe/SATA M.2 (optional) |
| PCIe | Up to 13x rear PCIe 5.0 x16 slots |
| Network Interface | 1x OCP 3.0 slot |
| Ports | Front: 1x USB 3.0, 1x USB 2.0，1x VGA, 1x Type-C |
| Rear: 2x USB3.0, 1x RJ45, 1x MicroUSB, 1x VGA |
|
| Management | Aspeed 2600 |
| Security | TPM 2.0 (Trusted Platform Module) |
| Power Supply | 4x 12V 3000W, 2+2 |
| Dimensions | 447mm (W) x 174.5mm (H) x 850mm (D) |
