Next-Generation G7 Series Servers

Powered by the Latest Industry-Leading Compute Processors

Leading Innovations

Delivering flexible performance through configurable options for data centers of all scales
Supporting leading storage technologies like E3.S and E1.S, PCIe Gen5 and CXL
Redefining power efficiency by raising PSU density up to 4%
Strengthening open collaboration for greater product reliability, efficiency

Reliability & Resilience

Increased redundancy in BIOS/BMC and components for stable operation
Increased security with boot memory inspection, MFP memory protection
Hardware redundancy from software design reduces system downtime and power consumption
Cloud-based operations and maintenance enable up to 95% fault diagnosis accuracy

Sustainability-Focused

End-to-end liquid cooling solutions
Intelligent temperature regulation and hardware architecture improve heat dissipation
Efficient packing technology reduces material volume by 90%, plastic waste by 30%
15% power reduction and real-time carbon emissions monitoring through dynamic power management

Aivres G7 Rackmount Server Platforms

General Purpose Servers

3180A7

High-Performance Single-Socket Server

1x AMD EPYC™ Genoa processor that supports up to 96cores and TDP 400W
Two I/O specifications, with up to 5 PCIe slots support on a 1U system
An all-flash configuration of up to 10 hot-swap NVMe SSDs provides an IOPS ten times higher than that of SATA SSDs

3280A7

Scalable High-Performance Server

1x AMD EPYC™ Genoa processor that supports up to 96cores and TDP 400W
4 DW GPUs that provide strong AI computing power
Optimal use of space that allows for maximum specifications
Dozens of different configurations for all application scenarios

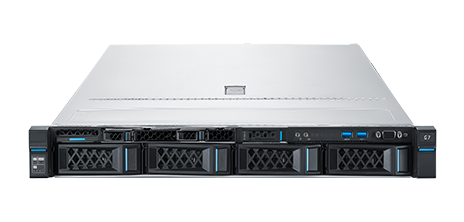

5180M7
High-Density 1U 2S

4th Gen Intel® Xeon® Scalable Processors

Supports up to 12x 2.5" SAS/SATA/NVMe or 16x E1.S SSD all-flash configurations
Delivers high-density performance and scalability in 1U
Supports compute-intensive applications like high-performance computing, virtualization
Supports 3 cooling schemes: air cooling, cold plate liquid cooling, and immersion liquid cooling

5180A7
High-Density 1U 2S

AMD EPYC™ 9004 Series Processors

Up to 96 cores, TDP up to 400W, 384MB L3 cache
Memory frequency up to 4800 MHZ greatly improves operation efficiency
Front storage supports 2x E1.S, delivering greater storage capacity and easier maintenance
Supports complex workloads like virtualization and high-performance computing

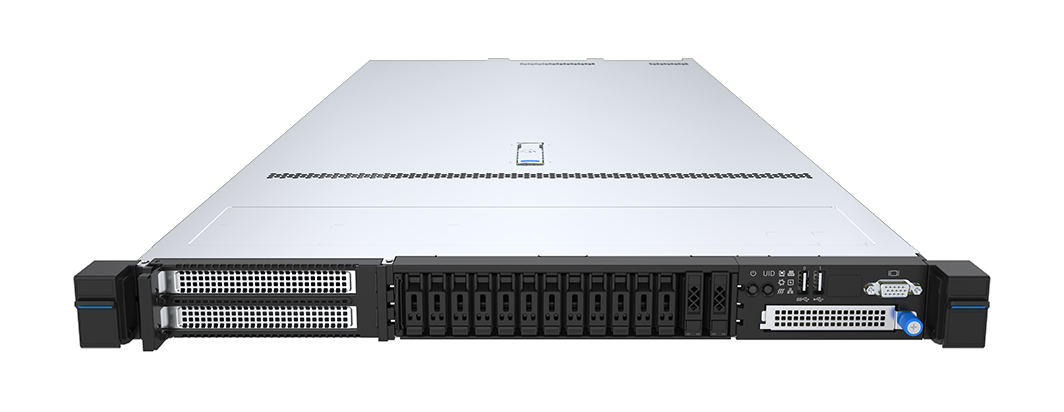

5180R7
High-Density 1U 2S

AmpereOne™ Processors

Delivers optimized CPU performance
Supports SmartNIC to reduce CPU loads, optimize NFV, and accelerate applications like virtualization
Supports PCIe 5.0, customizable PCIe configurations for various needs

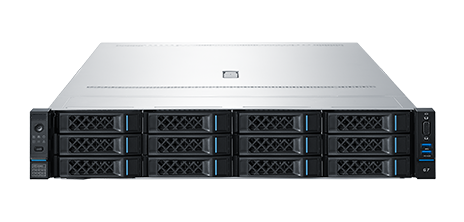

5280M7
Flexible 2U 2S

4th Gen Intel® Xeon® Scalable Processors

Front storage supports up to 25x SAS/SATA or 24x E3.S/U.2 NVMe hard drives
Rear supports up to 13x PCIe slots, 2x OCP 3.0 cards, support optional RAID card
Delivers high compute performance, ecosystem compatibility, and flexible configurations to support a variety of applications
Tool-free maintenance with modular server design

5280A7
Flexible 2U 2S

AMD EPYC™ 9004 Series Processors

24 x E3.S delivers high flash storage density and power efficiency
Flexible PCIe expansions with OCP3.0 enable on-premise and cloud deployment
Up to 192 cores and 384MB L3 cache
Up to 400TB storage and maximum of 4 dual-width GPU
Tool-free maintenance with modular server design

5280R7
Flexible 2U 2S

AmpereOne™ Processors

2x AmpereOne™ Processors deliver peak industry core density and performance with up to 128 cores and PCIe 5.0
Customizable PCIe configurations, including 4x dual-width T4 GPUs, to support different workloads
Energy-efficient balanced power layout to reduce CPU loads, import smart NIC and optimize NFV

Storage Optimized Servers

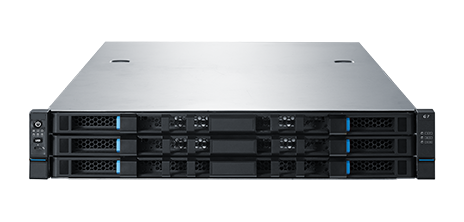

5266M7
Storage-Optimized 2U 2S

4th Gen Intel® Xeon® Scalable Processors

Features three-tier storage architecture to deliver balanced computing and storage I/O
Front storage supports up to 28x 3.5" SAS/SATA
I/O expansion supports 8x PCIe with 32GT/s PCIe 5.0 transfer rate, 400Gb networking and low latency
Supports applications like big data, CDN, hyperconvergence, and distributed storage

5466M7
Storage-Optimized 4U 2S

4th Gen Intel® Xeon® Scalable Processors

Supports up to 46x 3.5" SAS/SAT, 2x double-width GPUs or 8x single-width GPUs
13x PCIe slots support 2x hot-swappable OCP 3.0 cards, and enable different configurations of various storage, networking, and GPU modules
Supports cold-plate liquid cooling
Supports local data analysis and real-time AI applications, warm/cold data storage, big data storage, cloud-based storage, video monitoring applications

Powerful AI Servers

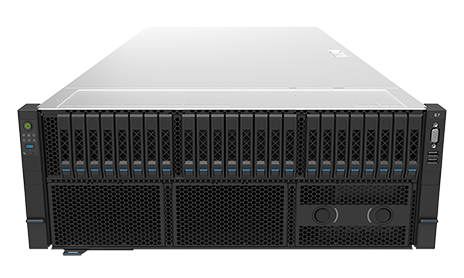

5468M7
Versatile 4U 2S

4th Gen Intel® Xeon® Scalable Processors

Supports various high-performance GPUs
Customizable to support specialized AI tasks including AI training, AI inference, deep learning, AI for Science, Metaverse, AIGC
Flexible I/O design and hardware trouble shooting module offer easy maintenance and versatile build options
Supports liquid cooling

5468A7
Versatile 4U 2S

AMD EPYC™ 9004 Series Processors

Supports various high-performance GPUs
Customizable to support specialized AI tasks including AI training, AI inference, AI4Science, graphics and video codec processing
Flexible I/O design and hardware trouble shooting module offer easy maintenance and versatile build options
Supports liquid cooling

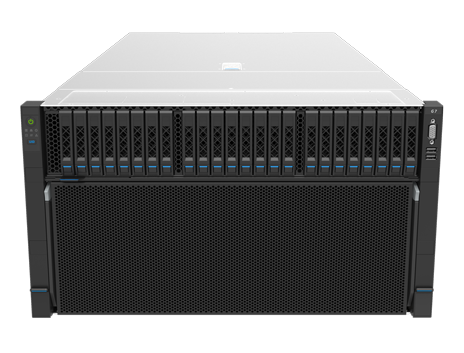

5688M7
6U 2S Training Server

4th Gen Intel® Xeon® Scalable Processors

8x 700W GPUs
Delivers industry-leading performance, I/O expansion and energy efficiency
Supports demanding AI computing tasks like trillion-parameter Transformer model training, massive recommender systems, Metaverse workloads, and AI + Graphics workloads

5688A7
6U 2S Training Server

AMD EPYC™ 9004 Series Processors

8x 700W GPUs
Supporting air and liquid cooling with optimized PUE
Supports demanding AI computing tasks like trillion-parameter Transformer model training, massive recommender systems, and AI + Graphics workloads
Flexible PCIe expansions with CX7, OCP3.0, and multiple SmartNICs enabling both on-premise and cloud deployment

Cloud-Optimized / Mission Critical Servers

8260M7
Cloud-Optimized 2U 4S

4th Gen Intel® Xeon® Scalable Processors

Memory supports up to 64 DDR5, RDIMM
Front storage supports up to 25x 2.5" SAS/SATA or 24x U.2
Internal storage supports up to 2x M.2
Rear supports up to 2x 2.5" SATA/NVMe, 2x OCP 3.0, 8x PCIe x16 + 1x PCIe x8

8480M7
Mission Critical 4U 4S

4th Gen Intel® Xeon® Scalable Processors

Memory supports up to 64 DDR5, RDIMM
Front storage supports up to 25x 2.5" SAS/SATA, 12x 3.5" SAS/SATA + 8x 2.5" SAS/SATA, or 24x U.2
Internal storage supports up to 2x M.2
Rear supports up to 2x 2.5" SATA/NVMe, 2x OCP 3.0, 4x PCIe x16 + 11x PCIe x8

860M7
Mission Critical 6U 8S

4th Gen Intel® Xeon® Scalable Processors

Mission Critical Server

8x 4th Gen Intel® Xeon® Scalable processors
High density memory supports up to 128 DDR5 DIMM
Supports mission-critical applications like large-scale databases, SAP HANA memory computing, virtualization integration, high-performance computing, and hyperscale cloud

Multi-Node High-Density Servers

24M7-1S
2U 1S 4-Node Server

4th Gen Intel® Xeon® Scalable Processors

1x CPU per node
8x DIMM DDR5, 2x PCIe Gen5 x16, 1x OCP 3.0 PCIe Gen5 x16
Supports diskless, 24x 2.5" and 18x E1.S configurations
High-density 2U delivers high performance, reliability and space-, power-, and cost-efficiency
Designed for compute-intensive applications like high-performance computing, virtualization, high-density data centers

24M7-2S
2U 2S 4-Node Server

4th Gen Intel® Xeon® Scalable Processors

2x CPU per node
16x DIMM DDR5, 2x PCIe Gen5 x16, 1x OCP 3.0 PCIe Gen5 x16
Supports diskless, 4x 2.5" (15mm) and 8x 2.5” (7mm) configurations
High-density 2U delivers high performance, reliability and space-, power-, and cost-efficiency
Designed for compute-intensive applications like high-performance computing, virtualization, high-density data centers

24A7-2S
2U 1S 4-Node Server

AMD EPYC™ 9004 Series Processors

1x CPU per node
High-density 2U delivers the highest performance density in a single-socket design
Up to 48 DDR5 DIMM, up to 4800 MT/s for each CPU
Supports flexible configurations up to 24 2.5” NVMe/SAS/SATA or 8 E1.S

24A7-2S
2U 2S 4-Node Server

AMD EPYC™ 9004 Series Processors

2x CPU per node
Up to 96 DDR5 DIMM, up to 4800 MT/s for each CPU
Supports flexible configurations up to 8 2.5” NVMe/SAS/SATA or 4 2.5” NVMe/SAS/SATA drives
Supports air and liquid cooling

22M7
2U 1S 2-Node Server

4th Gen Intel® Xeon® Scalable Processors

1x CPU per node
8x DIMM DDR5, 2x PCIe Gen5 x16, 1x OCP 3.0 PCIe 5.0 x16
Supports diskless and 16-E1.S configurations

22A7
2U 1S 2-Node Server

AMD EPYC™ 9004 Series Processors

1x CPU per node
Up to 24 DDR5 DIMM, up to 4800 MT/s for each CPU
Supports 2 GPU cards
Supports up to 16 E1.S
